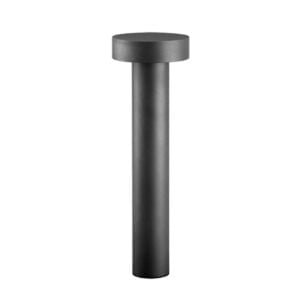

CIRCLE
Product Description
A family of bollards and applique characterized by
the balance between sculptural form and lighting
technology.
The collection is very wide, with different lighting
options. Besides lighting the surrounding environment,
the light plays with the lamp-object by revealing and
enhancing the volumes. CIRCLE, in all its varieties, is
an aesthetically pleasing object also when switchedoff,
thanks to its design that interacts with daylight,
creating shadows and visual softness. The applique is
designed to allow a double emission with diffused
optic.
Installation
Surface mounted
Connection
Design
Die-cast aluminium body Extruded pole High efficiency LED lighting Electrostatic powder paint High quality silicon gasket Galvanized metal anchorage
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CIRCLE.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
CIRCLE.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
CIRCLE.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
CIRCLE.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
CIRCLE.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
CIRCLE.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
CIRCLE.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
CIRCLE.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
CIRCLE.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
CIRCLE.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
