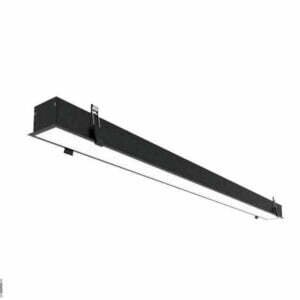

LINEA 82
Product Description
Aluminum extruded body
Anodized coating
UV protected frosted diffuser
Adjustable length steel ropes
Nickel plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lengths
Optional body colors
ENEC Standarts
OPTIONAL : IP40 , IP44 , IP54 , IP65.
Installation
Aluminum extruded body, UV protected diffuser, Adjustable length steel ropes, Nickel plated brass parts, Constant current LED driver, Electrostatic powder coating paint, Production in different lengths, Optional body colors, ENEC standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LINEA 82.11.500.N.4.120
11 W
4000 K
500 mm
1133 lm
LINEA 82.16.500.N.4.120
16 W
4000 K
500 mm
1648 lm
LINEA 82.15.600.N.4.120
15 W
4000 K
600 mm
1725 lm
LINEA 82.18.600.N.4.120
18 W
4000 K
600 mm
1854 lm
LINEA 82.20.800.N.4.120
20 W
4000 K
800 mm
2300 lm
LINEA 82.22.1000.N.4.120
22 W
4000 K
1000 mm
2266 lm
LINEA 82.25.1000.N.4.120
25 W
4000 K
1000 mm
2575 lm
LINEA 82.32.1000.N.4.120
32 W
4000 K
1000 mm
3296 lm
LINEA 82.30.1100.N.4.120
30 W
4000 K
1100 mm
3450 lm
LINEA 82.27.1200.N.4.120
27 W
4000 K
1200 mm
2781 lm
LINEA 82.28.1200.N.4.120
28 W
4000 K
1200 mm
2884 lm
LINEA 82.39.1200.N.4.120
39 W
4000 K
1200 mm
4017 lm
LINEA 82.30.1300.N.4.120
30 W
4000 K
1300 mm
3090 lm
LINEA 82.36.1400.N.4.120
36 W
4000 K
1400 mm
3708 lm
LINEA 82.33.1500.N.4.120
33 W
4000 K
1500 mm
3399 lm
LINEA 82.45.1500.N.4.120
45 W
4000 K
1500 mm
4635 lm
LINEA 82.48.1500.N.4.120
48 W
4000 K
1500 mm
4944 lm
LINEA 82.45.1800.N.4.120
45 W
4000 K
1800 mm
5175 lm
LINEA 82.48.1800.N.4.120
48 W
4000 K
1800 mm
4944 lm
LINEA 82.44.2000.N.4.120
44 W
4000 K
2000 mm
4532 lm
LINEA 82.54.2000.N.4.120
54 W
4000 K
2000 mm
5562 lm
LINEA 82.64.2000.N.4.120
64 W
4000 K
2000 mm
6592 lm
LINEA 82.44.2500.N.4.120
44 W
4000 K
2500 mm
5060 lm
LINEA 82.64.2500.N.4.120
64 W
4000 K
2500 mm
6510 lm
LINEA 82.65.3000.N.4.120
65 W
4000 K
3000 mm
6695 lm
LINEA 82.96.3000.N.4.120
96 W
4000 K
3000 mm
9890 lm
