SKLAD
Product Description
Installation
5921
Connection
Design
Lenses
Light distribution
Specification
Versions
Documents

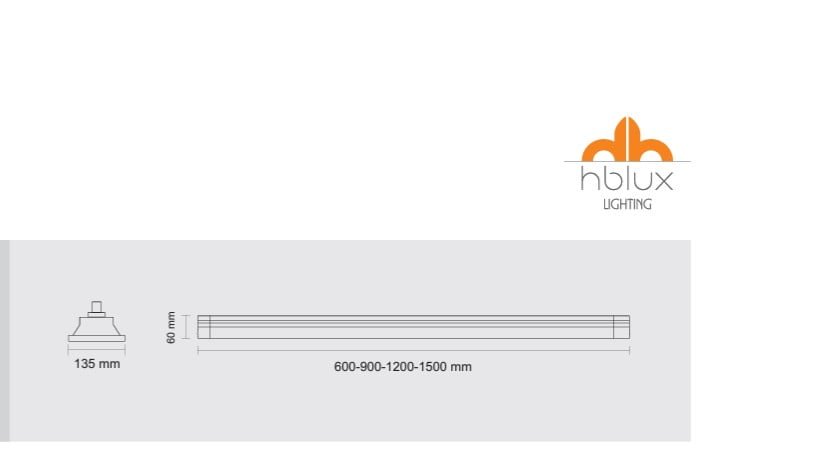

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SKLAD.50.600.AC.N.4.120.9016
50 W
4000 K
135X60X600 mm
5600 lm
SKLAD.65.600.AC.N.4.120.9016
65 W
4000 K
135X60X600 mm
8400 lm
SKLAD.75.900.AC.N.4.120.9016
75 W
4000 K
135X60X900 mm
10500 lm
SKLAD.110.1200.AC.N.4.120.9016
110 W
4000 K
135X60X1200 mm
15400 lm
SKLAD.150.1500.AC.N.4.120.9016
150 W
4000 K
135X60X1500 mm
21000 lm
