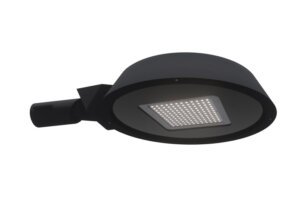

SIGMA
Product Description
The elegant sobriety of SIGMA, combined with state-of-the-art lighting technology, ensures its over-average versatility. It can easily be integrated in just about any architectural environment and fulfils every requirement.
It is Aluminium die cast body combining many wattages and angles. The cover of the luminaire designed for optimal dissipation of the heat produced by the LED’s, providing very high lighting performance. SIGMA can catch 17040 Lumens with 120 Watts.
Installation
High operational temperature, Can be easily integrated to many designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance, High lumen output, Adjustable brackets
18907
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Heat & Impact Resistant, Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >100.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
5mm Tempered Glass
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
10
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SIGMA.40.AC.N.4.ASY.9005
40 W
4000 K
525X110 mm
5800 lm
SIGMA.60.AC.N.4.ASY.9005
60 W
4000 K
525X110 mm
8700 lm
SIGMA.75.AC.N.4.ASY.9005
75 W
4000 K
525X110 mm
10875 lm
SIGMA.90.AC.N.4.ASY.9005
90 W
4000 K
525X110 mm
13050 lm
SIGMA.120.AC.N.4.ASY.9005
120 W
4000 K
525X110 mm
17040 lm
SIGMA.150.AC.N.4.ASY.9005
150 W
4000 K
525X110 mm
21300 lm
