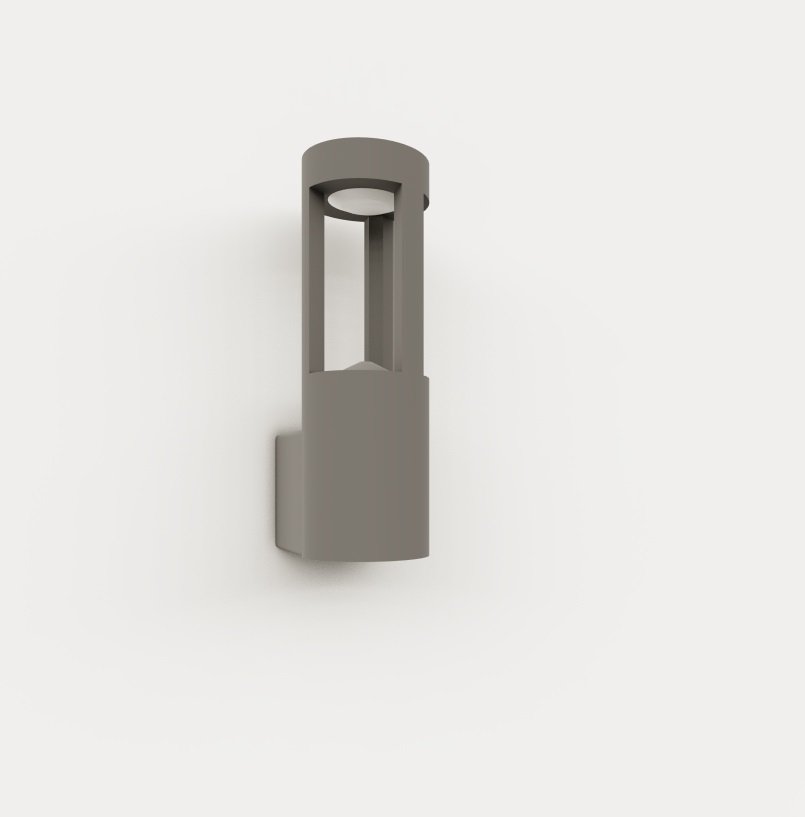

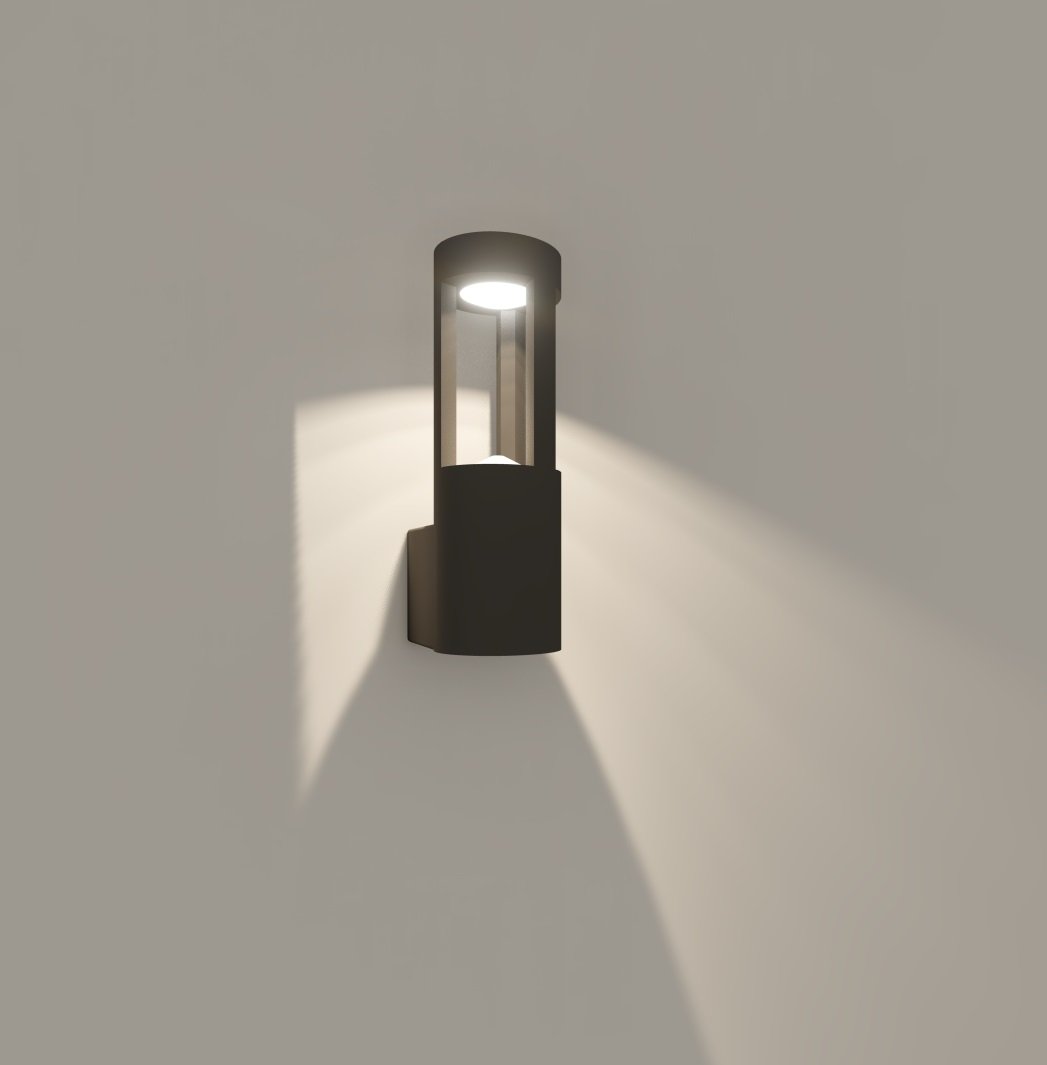

SANTO
Product Description
Flawless Wall mounted luminaire that stceernumerous benets in terms of installation, maintenance and operation with IP65. SANTO is a prime example of the immense power of puristic design. Without unnecessary frills; nothing distracts from the focus on the key essentials: powerful, homogeneous light in a perfectly sselwacylindrical form.
The housing and technical components have been carefully selected to ensure economic ycneicfeand a long service life for all products in the range.
Installation
SURFACE MOUNTED
18876
Connection
DALI, DIM, DMX,ON/OFF
Design
Glare-free, Economic and efficient , Easy installation, High performance LED, High corrosion resistance, Symmetric Beam, UV Resistant Diffuser, Modern Design
Lenses
Aluminium
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents

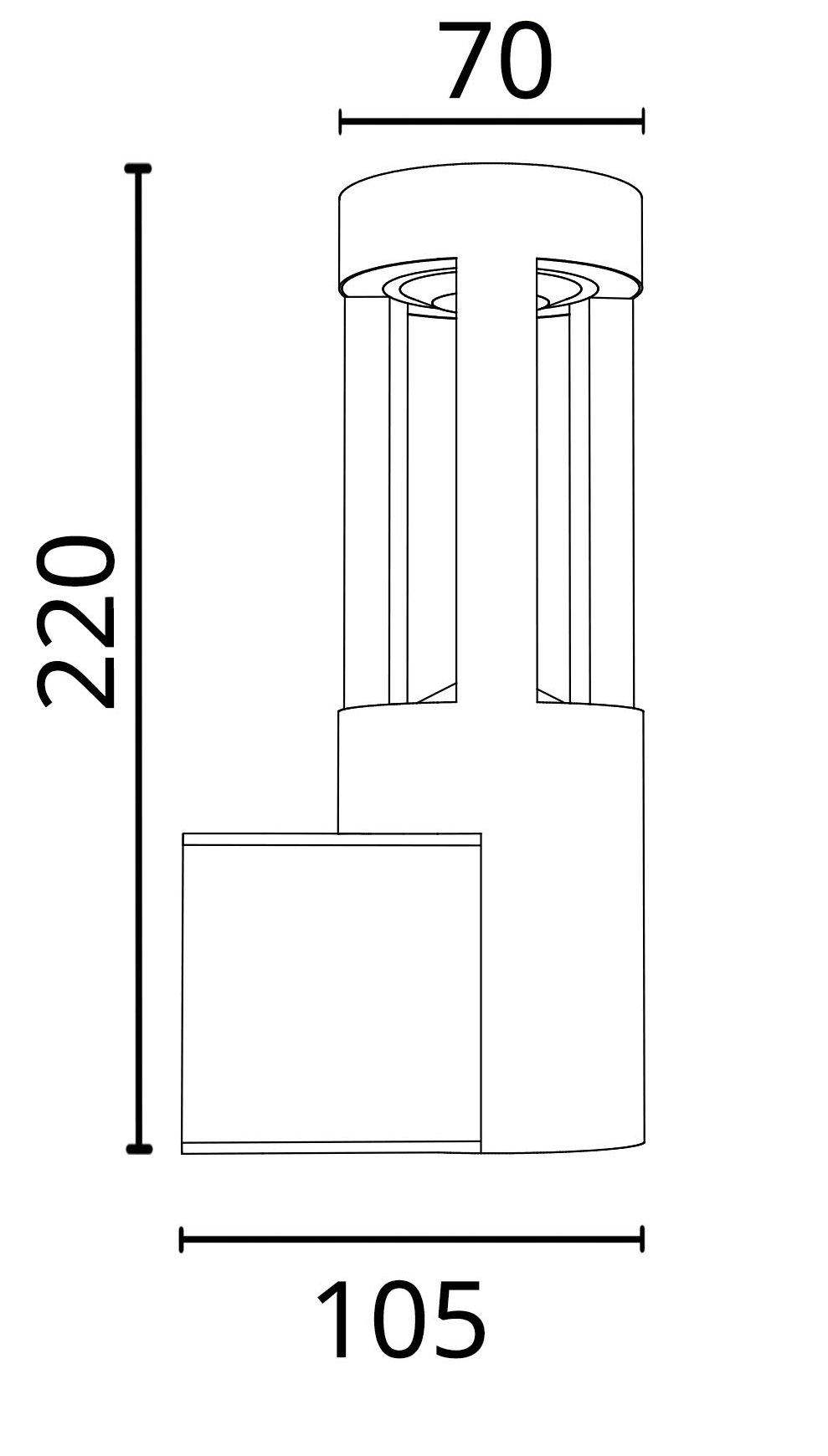

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
65
Impact Resistance:
09
CCT:
2700, 3000, 4000, 6500 K
Beam Angle:
Medium beam, Narrow beam, Round beam, Wide beam
Control:
DALI, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SANTO.5.AC.N.4.30.7016
5 W
4000 K
220x105x70 mm
575 lm
SANTO.6.AC.N.4.30.7016
6 W
4000 K
220x105x70 mm
690 lm
SANTO.7.AC.N.4.30.7016
7 W
4000 K
220x105x70 mm
805 lm
SANTO.10.AC.N.4.30.7016
10 W
4000 K
220x105x70 mm
1150 lm
SANTO.12.AC.N.4.30.7016
12 W
4000 K
220x105x70 mm
1380 lm
SANTO.13.AC.N.4.30.7016
13 W
4000 K
220x105x70 mm
1495 lm
SANTO.20.AC.N.4.30.7016
20 W
4000 K
220x105x70 mm
2110 lm
