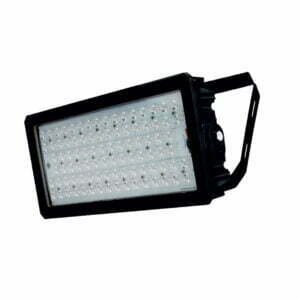

RADON HIGH BAY
Product Description
Aluminium Injection Die cast Modular highbay with advanced LED Technology that can be used in harsh environments.
Very light efficient luminaire designed for high ceiling Areas. RADON HIGH BAY Serie is available is different Powers and offers 5 Years Warranty. Made of Aluminium ınjection Die-Cast body with High-output Led Chips in 6500K, 5000K, 4000K and 3000K options which can be customized upon request. The highbay is using 5mm tempered Extra Clear Glass. Thanks to Adjustable brackets, it can be easily mounted anywhere and only Plug&Play.
Installation
High operational temperature, Can be easily integrated to many designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance, High lumen output, Adjustable brackets
17515
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Heat & Impact Resistant Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >60.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
RADON.HIGHBAY.150.AC.N.4.60.9005
150 W
4000 K
510X350X150 mm
19800 lm
RADON.HIGHBAY.200.AC.N.4.60.9005
200 W
4000 K
510X350X150 mm
26400 lm
RADON.HIGHBAY.240.AC.N.4.60.9005
240 W
4000 K
510X350X150 mm
31680 lm
RADON.HIGHBAY.L.380.AC.N.4.60.9005
380 W
4000 K
510X350X150 mm
55100 lm
RADON.HIGHBAY.L.440.AC.N.4.60.9005
440 W
4000 K
510X350X150 mm
63800 lm
RADON.HIGHBAY.L.500.AC.N.4.60.9005
500 W
4000 K
510X350X150 mm
72500 lm
