MINI PLUM SLIM
Product Description

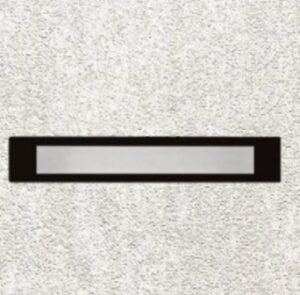

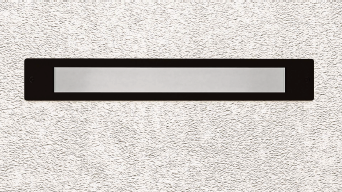

A simple and structural accent for modern exteriors. MINI PLUM SLIM Outdoor LED recessed Wall light provides soft atmospheric lighting to accentuate outdoor spaces and offer guidance along pathways.
Made of aluminum, this rectangular erutxextends straight upward to allow its light to spill outward.
This luminaire is an iconic design in a modern reinterpretation to LED sources with outstanding performance, designed to guarantee an high visual comfort, glare-free lighting with no light pollution.
Installation
Glare-free, Economic and efficient , Easy installation, High performance LED, High corrosion resistance, Symmetric Beam, UV Resistant Diffuser, Modern Design
19192
Connection
DALI, DIM, DMX,ON/OFF
Design
Can be easily integrated to many designs Easy installation High performance LED High corrosion resistance
Lenses
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents

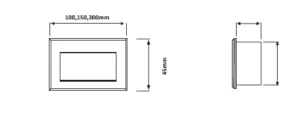

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
67
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Round beam, Wide beam
Control:
DALI, Daylight control
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
PLUM.S.3.AC.N.3.30.9006
3 W
3000 K
100mm mm
300 lm
PLUM.S.5.AC.N.3.30.9006
5 W
3000 K
100mm mm
500 lm
PLUM.S.3.AC.N.3.30.9006
3 W
3000 K
150mm mm
300 lm
PLUM.S.5.AC.N.3.30.9006
5 W
3000 K
150mm mm
500 lm
PLUM.S.7.AC.N.3.30.9006
7 W
4000 K
150mm mm
700 lm
PLUM.S.10.AC.N.3.30.9006
10 W
4000 K
300mm mm
1000 lm
PLUM.S.12.AC.N.3.30.9006
12 W
4000 K
300mm mm
1200 lm
PLUM.S.15.AC.N.3.30.9006
15 W
3000 K
300mm mm
1500 lm
PLUM.S.20AC.N.3.30.9006
20 W
3000 K
300mm mm
2000 lm
