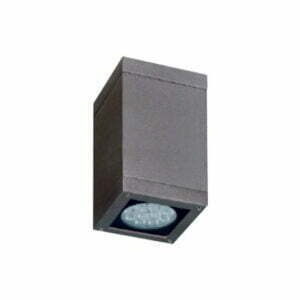

LAQUE SQ M
Product Description
Flawless Wall mounted luminaire that reflects numerous benefits in terms of installation, maintenance and operation with IP65. LAQUE SQ M is a prime example of the immense power of puristic design. Without unnecessary frills; nothing distracts from the focus on the key essentials: powerful, homogeneous light in a perfectly flawless cylindrical form.
The housing and technical components have been carefully selected to ensure economic efficiency and a long service life for all products in the range.
Installation
Flawless form, Economic and efficient, Easy installation, High performance LED, High corrosion resistance
5964,https://www.hb-lux.com/wp-content/uploads/2022/09/LAQUE-SQ-M.pdf
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >100.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional), COB LED & Power LED Options,
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
65
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LAQUESQ.M.6.AC.N.4.30.7016
6 W
4000 K
100X100X200 mm
720 lm
LAQUESQ.M.9.AC.N.4.30.7016
9 W
4000 K
100X100X200 mm
1080 lm
LAQUESQ.M.912AC.N.4.30.7016
12 W
4000 K
100X100X200 mm
1440 lm
