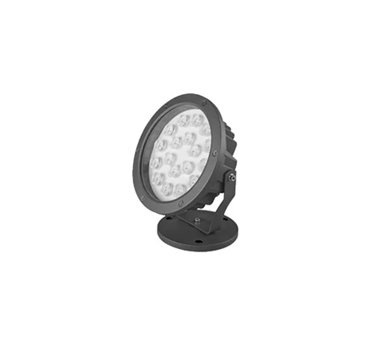

FRAX M
Product Description
A family of Adjustable circle thgildoodesigned in
different sizes, Powers and light options.
Perfect choice to meet the outdoor lighting
requirements which need high technicality and
captivating design.
Frax Consists of Aluminium Injection Die-cast with
a clear tempered Glass. It is dettwith Stainless
steel screws. It is applicable to the ground with the
special spike supplied. Frax projector is painted
anthracite with polyester powders with high
resistance to ultraviolet rays and corrosion. Flos
family is cer defiit IP66. Suitable for aggressive
environments. Frax M is the is the Medium version which can catch 10W power.
Installation
SURFACE MOUNTED
18208
Connection
30cm- 3x1.5 mm2 Cable
Design
CIRCLE SHAPE FLOODLIGHT MADE OF ALUMINIUM INJECTION DIE-CAST IN BLACK COLOR AS STANDARD OPTION WITH PMMA LENSES AND 5mm TEMPERED GLASS
Lenses
PMMA MULTI LENSES
Light distribution
DIRECT BEAM ANGLE
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 4000, 6500 K
Beam Angle:
Medium beam, Narrow beam, Wide beam
Control:
DALI, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
FRAXM.10.AC.N.4.7016
10 W
4000 K
Ø280MM mm
1350 lm
FRAXM.15.AC.N.4.7016
15 W
4000 K
Ø280MM mm
2025 lm
FRAXM.20.AC.N.4.7016
20 W
4000 K
Ø280MM mm
2700 lm
FRAXM.25.AC.N.4.7016
25 W
4000 K
Ø280MM mm
3375 lm
FRAXM.30.AC.N.4.7016
30 W
4000 K
Ø280MM mm
4050 lm
