FORTIS L
Product Description
FORTIS reflects HB-LUX’s “reliability” approach that results in the overall best characteristics.
It is made of Electrostatic powder coated aluminum injection body resistant to UV rays with 5mm heat and impact resistant with tempered clear glass. It can be easily installed thanks to the Angle adjustable bracket. FORTIS L can catch 28400 Lumens with 200 Watts.
Installation
High operational temperature, Can be easily integrated to many designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance, High lumen output, Adjustable brackets
18857
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Heat & Impact Resistant Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >60.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents

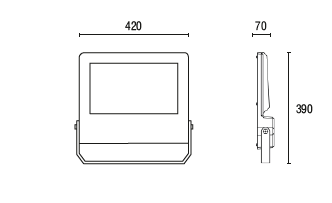

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
FORTIS.L.150.AC.N.4.60.9005
150 W
4000 K
420X390X70 mm
21300 lm
FORTIS.L.175.AC.N.4.60.9005
175 W
4000 K
420X390X70 mm
24850 lm
FORTIS.L.200.AC.N.4.60.9005
200 W
4000 K
420X390X70 mm
28400 lm
