ARIZONA S
Product Description

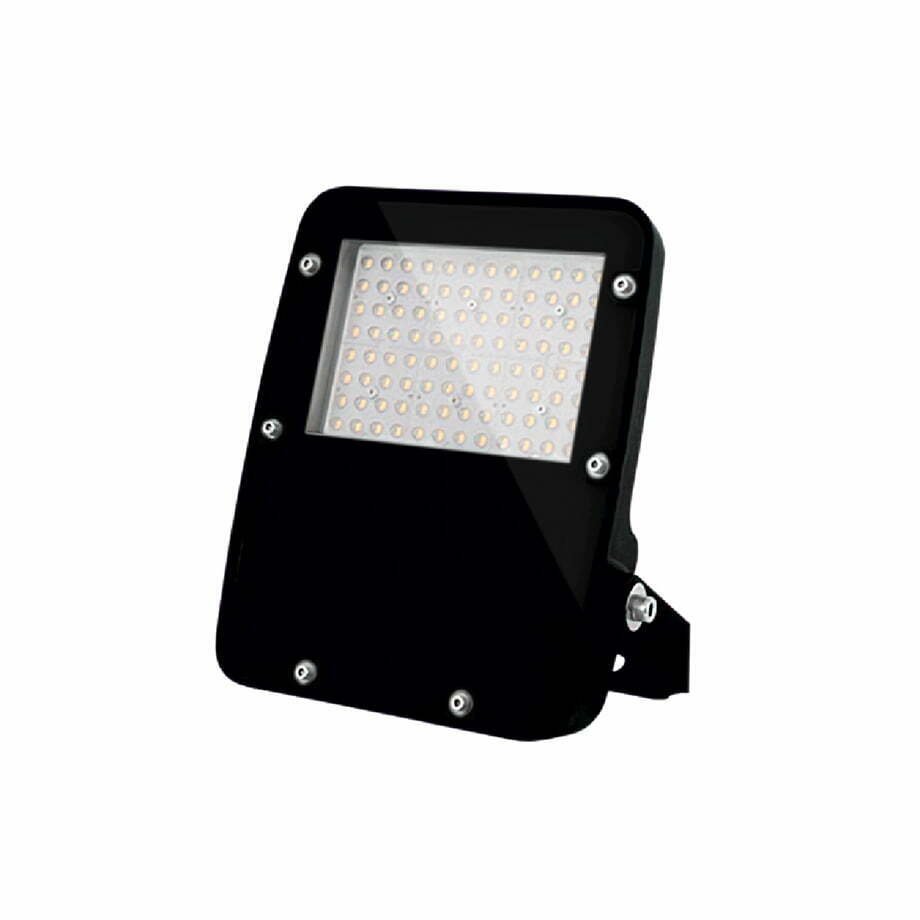

Conceived by our industrial designers, ARIZONA Family is the quintessence of the concept of comfort. Equipped with an advanced LED technology, the innovative ARIZONA light fixture is the contemporary version of a floodlight.
It is Aluminium die cast combining many wattages and angles. The cover of the fixture was designed for optimal dissipation of the heat produced by the LEDs, providing very high lighting performance. ARIZONA S can catch 8520 Lumens with 60 Watts.
Installation
High operational temperature, Can be easily integrated to many designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance, High lumen output, Adjustable brackets
5756,https://www.hb-lux.com/wp-content/uploads/2022/09/ARIZONA_S.pdf
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Heat & Impact Resistant Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >60.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ARIZONA.S.25.AC.N.4.60.9005
25 W
4000 K
213X263X56 mm
3550 lm
ARIZONA.S.40.AC.N.4.60.9005
40 W
4000 K
213X263X56 mm
5680 lm
ARIZONA.S.60.AC.N.4.60.9005
60 W
4000 K
213X263X56 mm
8520 lm
