ARIAN S
Product Description
Simple shapes are often best suited to the environment, and squares and circles have always been examples of harmony and perfection. In ARIAN, these characteristics are emphasized by applying a simple frame to the wall, which determines the luminous flux and accentuates objects even when closed.
Aluminium Body with no visible screws and hidden
installation tools. It is corrosion-free aluminium forms a
uniform and integrated whole, and features a high-quality
finish in metallic colours.
Installation
Glare-free, Economic and efficient , Easy installation, High performance LED, High corrosion resistance, Symmetric Beam, UV Resistant Diffuser, Modern Design
18066
Connection
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, PMMA Diffuser, Aluminium PCB, LED with Life Span >100.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA DUFFUSER
Light distribution
Specification
Versions
Documents

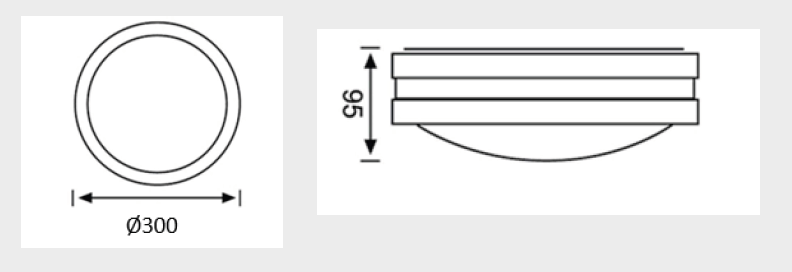

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
54
Impact Resistance:
09
CCT:
4000 K
Beam Angle:
Direct
Control:
ON/OFF
