VENUS
Product Description
A simple and structural accent for modern exteriors.

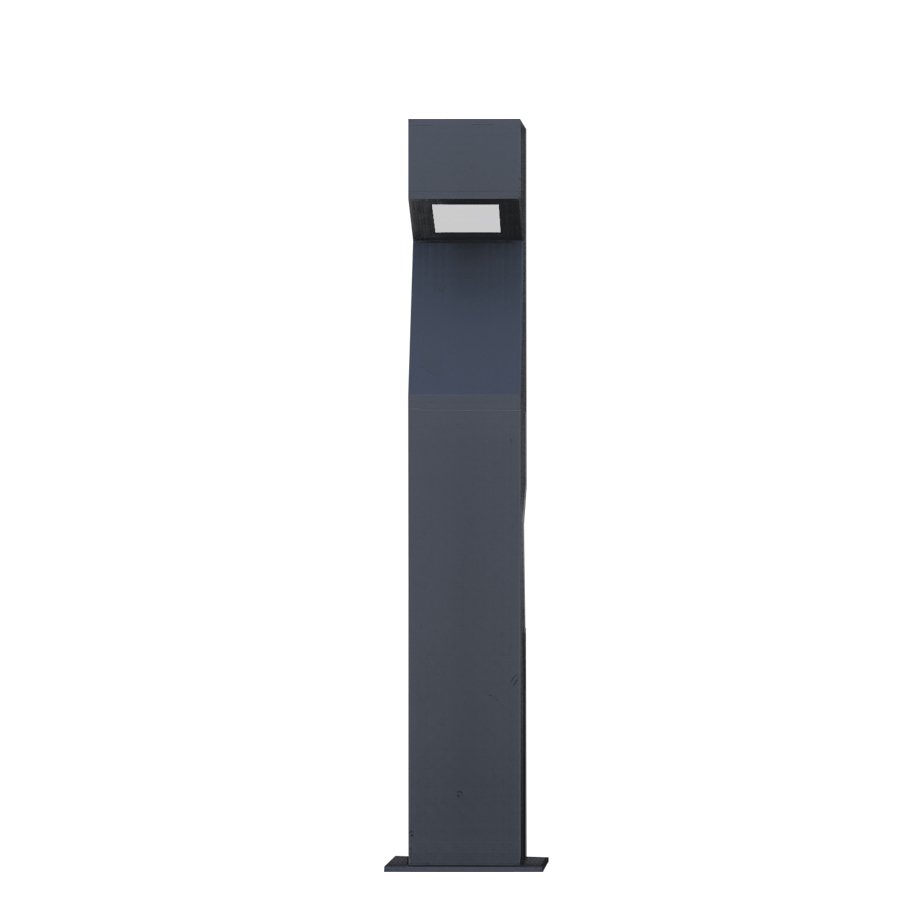

Venus Outdoor LED bollard provides soft
atmospheric lighting to accentuate outdoor spaces
and offer guidance along pathways.
Made of aluminum, this rectangular fixture extends
straight upward and boasts an rectangular-shaped
cutout to allow its light to spill outward. This bollard is
an iconic gothic design in a modern reinterpretation to
LED sources with outstanding performance, designed
to guarantee an high visual comfort, glare-free lighting
with no light pollution.
Installation
Surface mounted
Connection
Design
Aluminium body, Electrostatic powder paint, Galvanized metal anchorage
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
VENUS.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
VENUS.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
VENUS.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
VENUS.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
VENUS.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
VENUS.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
VENUS.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
VENUS.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
VENUS.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
VENUS.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
