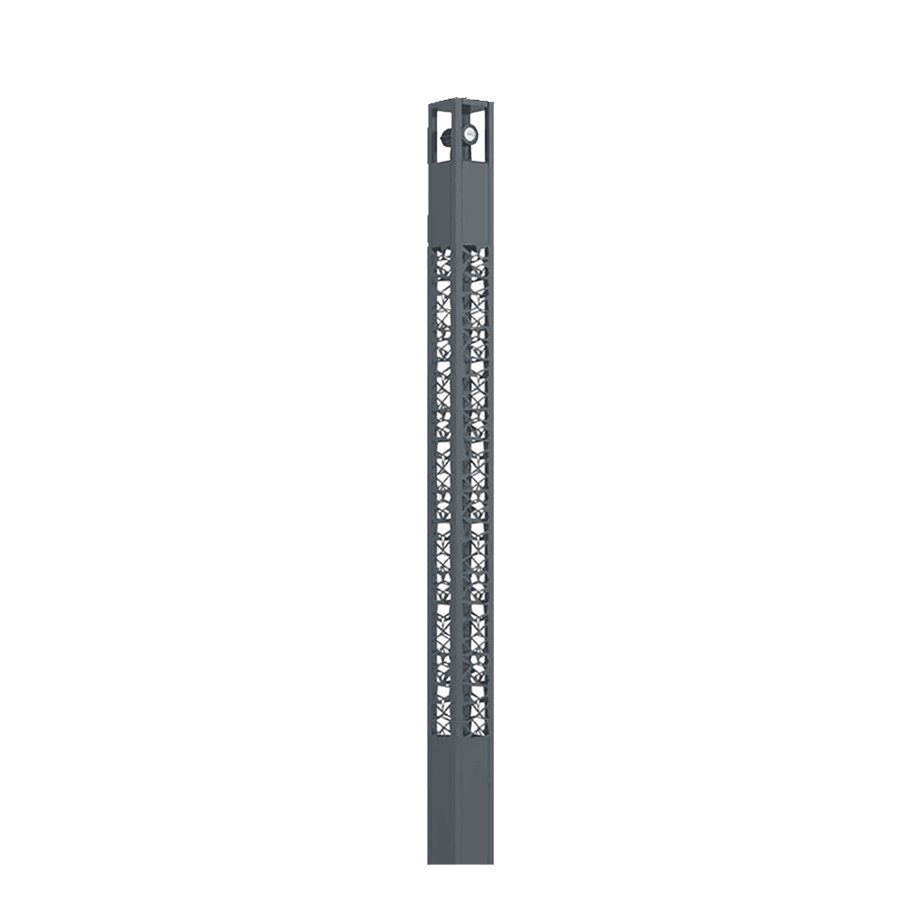

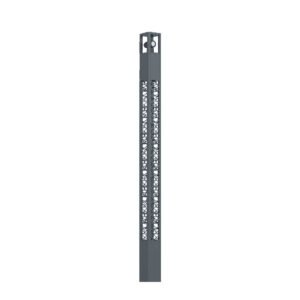

SQUARE MESH
Product Description
Square Mesh is a multi purpose urban lighting column suitable for squares, roads, pedestrian precincts, car parks and sports grounds. Advanced thermal design with cutting-edge manufacturing process and materials using Laser-cut technic. The system offers rotationally symmetrical light distribution narrow to wide beam. Designed to last in extremely harsh environments. Corrosion resistant double layer Electrostatic powder coated paint finish on aluminium housing with stainless steel screws (A4 grade) and silicone gaskets. Power unit is built in. Available in anthracite gray as a standard finish or any desired RAL colour. . Poles are in aluminium and available in different heights from 4m to 10m.
Installation
High corrosion resistance Aluminium body JPre-treated before the special powder coating ensuring high corrosion resistance JStainless steel fasteners in grade 316 JDurable silicone rubber gasket JHigh-efficiency optical reflector JIntegral control gear JMaximum wind load resistance is 160 km/h
Connection
DALI, DIM, DMX
Design
Lenses
PMMA Diffuser
Light distribution
3000K, 4000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
210-260 V
IP Rate:
66
Impact Resistance:
CCT:
3000, 4000, 6500 K
Beam Angle:
Direct
Control:
DALI, DMX
