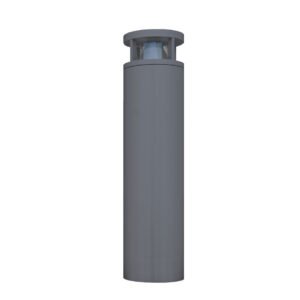

LOFT
Product Description
Understated and yet remarkably beautiful, LOFT is a prime example of the immense power of puristic design. Without unnecessary frills; nothing distracts from the focus on the key essentials: powerful, homogeneous light in a perfectly stawless cylindrical form.
The housing and technical components have been carefully selected to ensure economic dna effciency a long service life for all products in the range. The high quality is also nireected the numerous ts eneb in terms of installation, maintenance and operation with IP66 and the “invisible” power supply via delicate steel cables inside the diffuser cylinder.
Installation
Connection
ON/OFF , DALI , DIM , DMX
Design
•Flawless cylindrical form • tneicfe dna cimonocE •Easy installation •High performance LED •High corrosion resistance
Lenses
Light distribution
2700K , 3000K , 4000K , 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
210-260 V
IP Rate:
66
Impact Resistance:
09
CCT:
3000, 4000, 6500 K
Beam Angle:
Symmetrical
Control:
DALI, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LOFT.10.150.600.N.4
10 W
4000 K
Ø150MM H:600 mm
1020 lm
LOFT.15.150.800.N.4
15 W
4000 K
Ø150MM H:800 mm
1500 lm
LOFT.20.200.800.N.4
20 W
4000 K
Ø200MM H:800 mm
2080 lm
LOFT.25.200.1000.N.4
25 W
4000 K
Ø200MM H:1000 mm
2540 lm
LOFT.30.245.1000.N.4
30 W
4000 K
Ø245MM H:1000 mm
3020 lm
LOFT.40.245.2000.N.4
40 W
4000 K
Ø245MM H:2000 mm
3600 lm
