KAR BOLLARD
Product Description
KAR combines a squared, elegant shape to radial
optics specially designed to ensure the best lighting
performance, producing different light effects based
on the screen type.
The KAR range of outdoor bollard is resplendent in its
versatility and clear design style. Yet its star qualities
are in no way diva-like. Quite the opposite in fact: it is
robust, efficient and flexible. The high-quality lighting
tool is suitable for professional use and accentuation in
a wide variety of outdoor applications. The standard
design makes it easy to combine the three different
sizes.
Installation
Surface mounted
Connection
Design
Aluminium body, High Efficiency LED Lighting, Electrostatic powder paint, High quality silicon gasket, Anchor system
Lenses
PMMA acrylic light diffuser
Light distribution
Specification
Versions
Documents

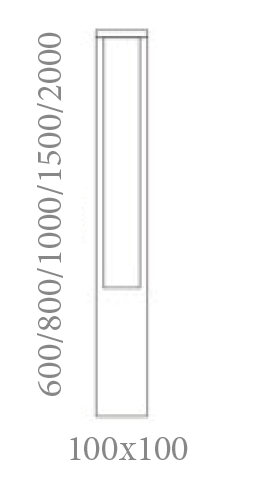

Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
KAR.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
800 lm
KAR.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1000 lm
KAR.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1500 lm
KAR.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2000 lm
KAR.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
2500 lm
KAR.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3000 lm
KAR.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
2500 lm
KAR.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3000 lm
KAR.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
3500 lm
KAR.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
4000 lm
