GOLD S
Product Description

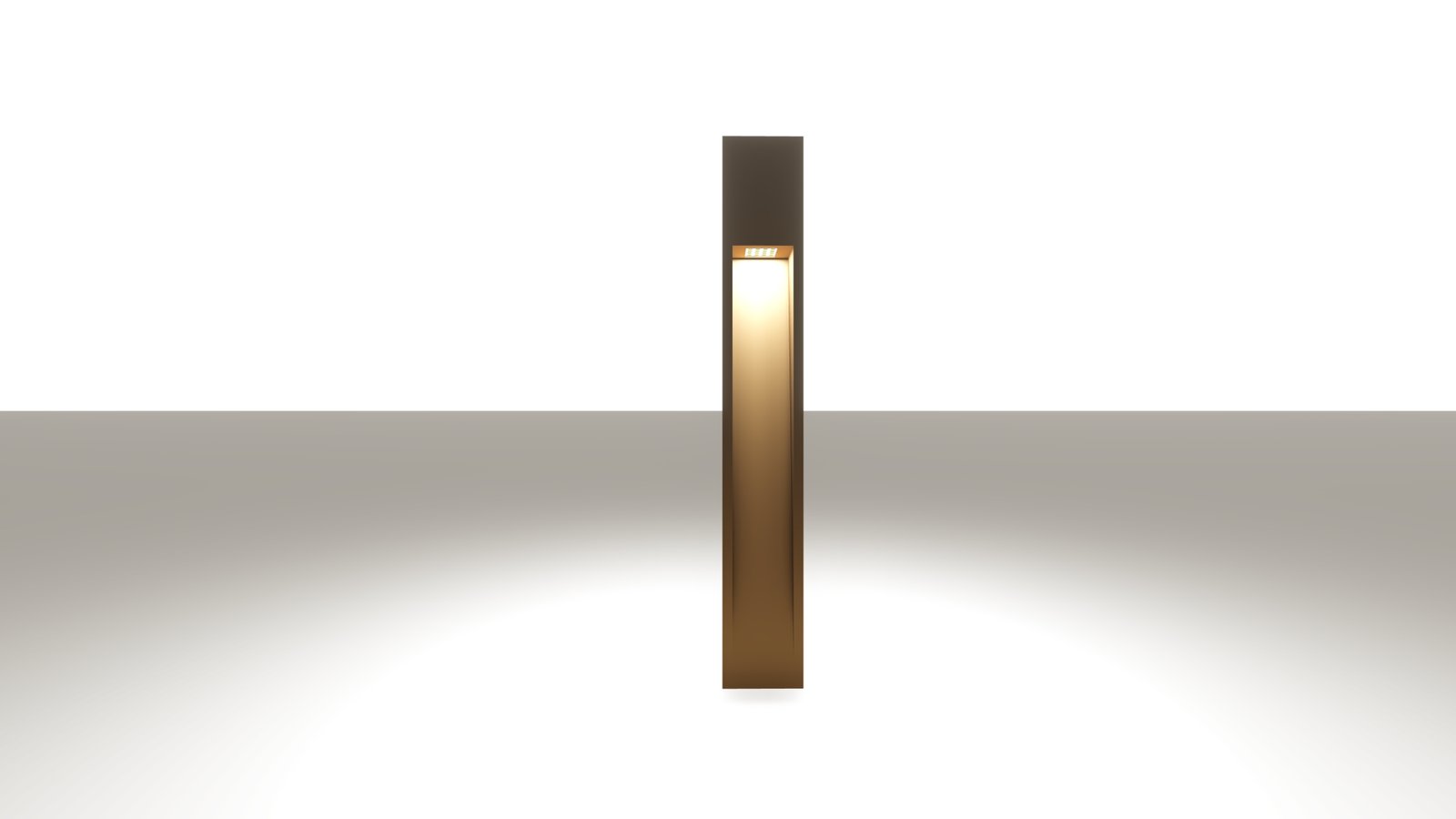

A bollard with perfect volume by primitive shapes and sharp edges, monuments of civilization disappeared. The light is projected through cuts and inclined planes.
Concrete is the central character of this bollard with multiple lighting solutions. Available in many different sizes, in single or double emission, this bollard becomes a light sculpture ideal for walkways, gardens, parks and landscape areas. GOLD S is generating a pleasant contrast, suitable for harsh environment.
Installation
Stainless steel
Connection
DALI DMX DIMMABLE
Design
Lenses
Light distribution
2700K , 3000K , 4000K, 5000K,6500K
Specification
Versions
Documents

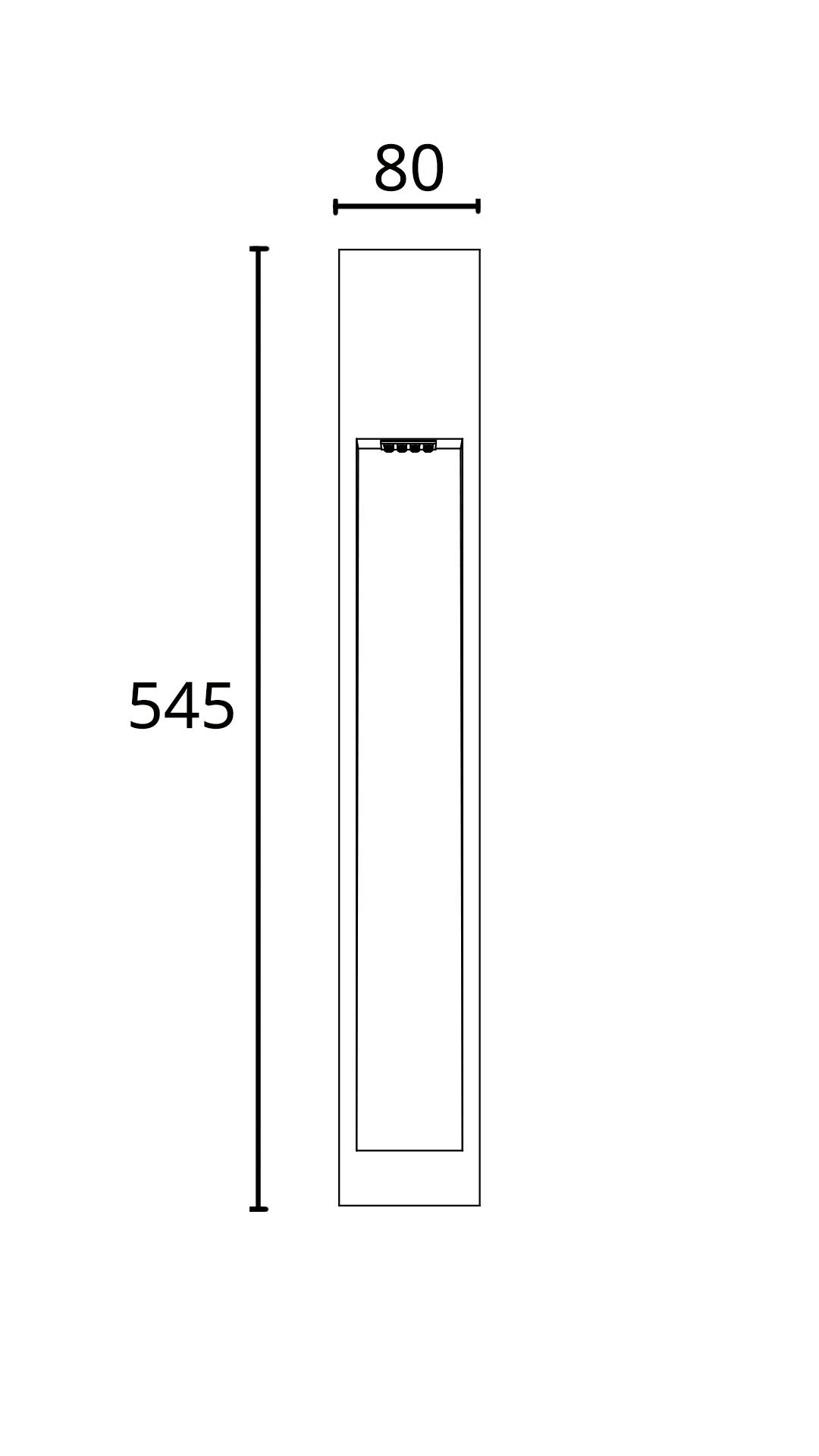

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical
Control:
DALI, Night dimming, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
GOLD.S.8.600.AC.N.4.SYM
8 W
4000 K
600 mm
1056 lm
GOLD.S.10.600.AC.N.4.SYM
10 W
4000 K
600 mm
1320 lm
GOLD.S.15.800.AC.N.4.SYM
15 W
4000 K
800 mm
1980 lm
GOLD.S.20.800.AC.N.4.SYM
20 W
4000 K
800 mm
2640 lm
GOLD.S.25.1000.AC.N.4.SYM
25 W
4000 K
1000 mm
3300 lm
GOLD.S.30.1000.AC.N.4.SYM
30 W
4000 K
1000 mm
3960 lm
GOLD.S.25.1500.AC.N.4.SYM
25 W
4000 K
1500 mm
3300 lm
GOLD.S.30.1500.AC.N.4.SYM
30 W
4000 K
1500 mm
3960 lm
GOLD.S.35.2000.AC.N.4.SYM
35 W
4000 K
2000 mm
4620 lm
GOLD.S.40.2000.AC.N.4.SYM
40 W
4000 K
2000 mm
5280 lm
