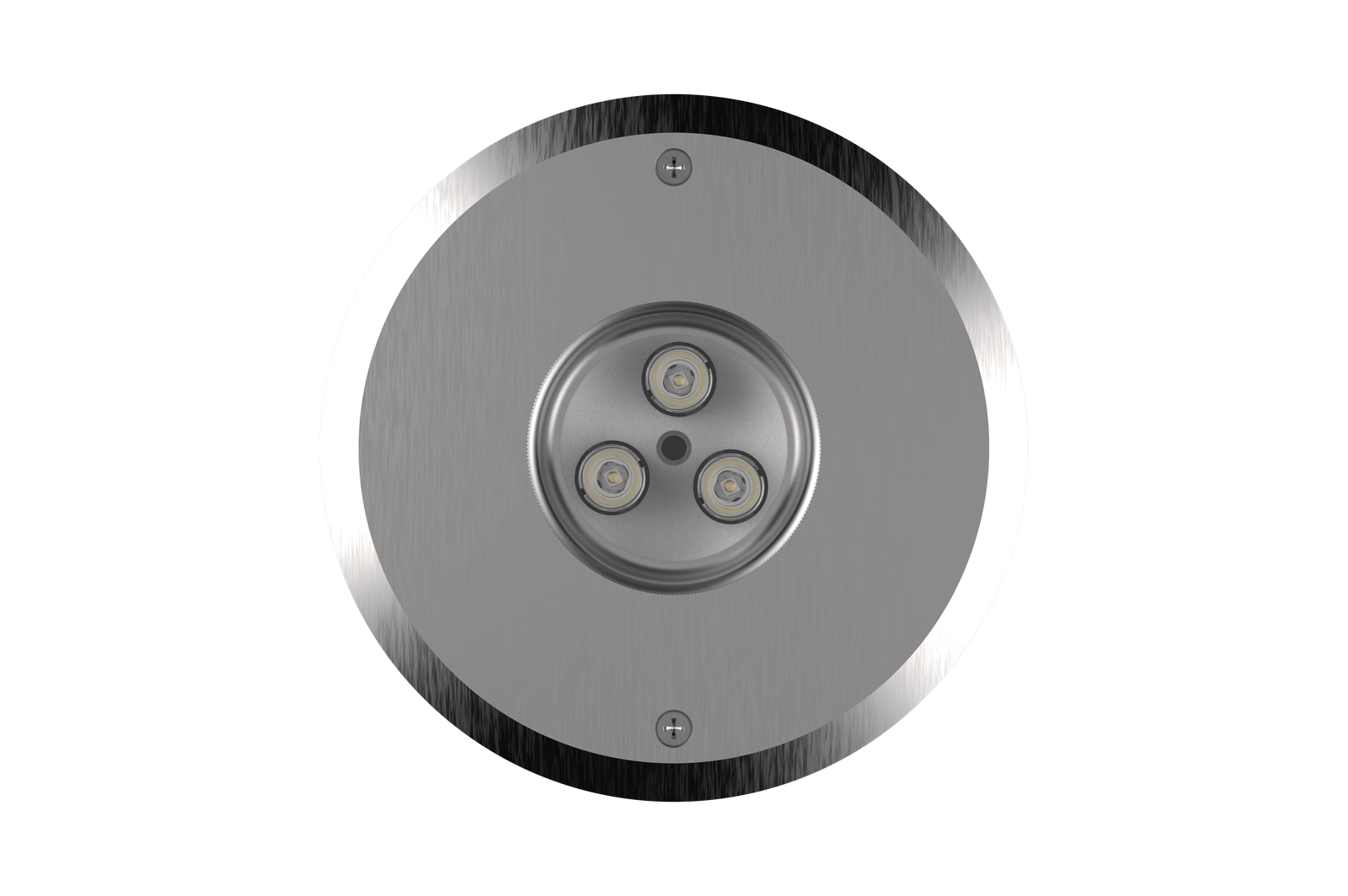

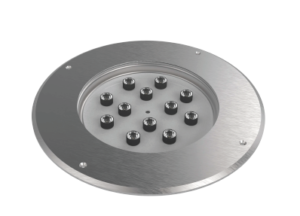

ELA INGROUND
Product Description
The elegant sobriety of ELA , combined with
state-of-the-art lighting technology, ensures
its over-average versatility. It can easily be
integrated in just about any environment
and fulfils every requirement.
Made of Stainless Steel body with single
cable entry, durable silicone rubber gasket
and clear toughened glass
Installation
Connection
Design
Stainless Steel body High quality silicone gasket 3 Step MacAdams
Lenses
Light distribution
Specification
Versions
Documents

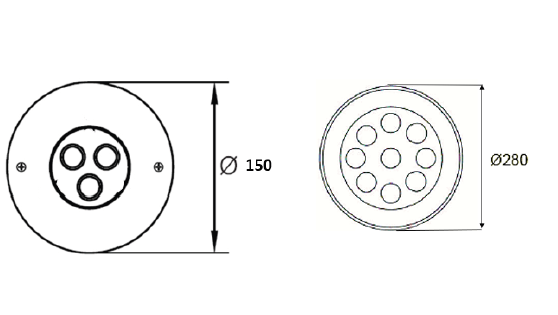

Technical Drawings
Specification
İnput Voltage:
24 V
IP Rate:
68
Impact Resistance:
09
CCT:
4000 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Wide beam
Control:
DALI, Manual control
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ELA.ING.5.N.30
5 W
4000 K
mm
625 lm
ELA.ING.10.N.30
10 W
4000 K
mm
1250 lm
ELA.ING.12.N.30
12 W
4000 K
mm
1500 lm
ELA.ING.15.N.30
15 W
4000 K
mm
1875 lm
