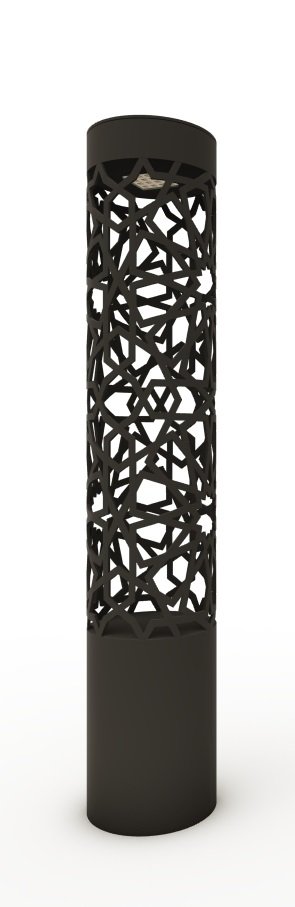

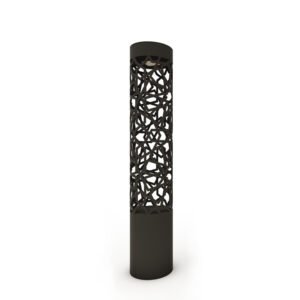

DECOR TR
Product Description
At the heart of the cross-roads in the city, decorative
lighting becomes an ideal tool to centralize the
functions of public spaces.
The multifunctional DECOR TR continues the tradition of
Hb-lux's adaptable and customizable products, this
time bringing together new functionalities related to the
transformation of urban infrastructures. With its
customizable laser cutting, it enhances the perfect
lighting ambiance decors. Thanks to its design that
interacts with daylight, creating shadows and visual
softness. The applique is designed to allow a double
emission with diffused optic.
Installation
SURFACE MOUNTED
Connection
Design
Aluminium body, High Efficiency LED Lighting, Electrostatic powder paint, High quality silicon gasket, Anchor system
Lenses
PMMA acrylic light diffuser
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
CCT:
2200, 2700, 3000, 3500, 4000, 4500, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
DECORTR.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
DECORTR.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
DECORTR.12.600.AC.N.4.SYM.7016
12 W
4000 K
600 mm
1585 lm
DECORTR.15.600.AC.N.4.SYM.7016
15 W
4000 K
600 mm
1980 lm
DECORTR.20.600.AC.N.4.SYM.7016
20 W
4000 K
600 mm
2640 lm
DECORTR.25.600.AC.N.4.SYM.7016
25 W
4000 K
600 mm
3300 lm
DECORTR.30.600.AC.N.4.SYM.7016
30 W
4000 K
600 mm
3960 lm
DECORTR.305600.AC.N.4.SYM.7016
35 W
4000 K
600 mm
4620 lm
