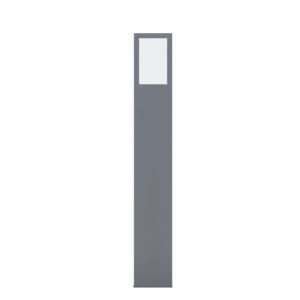

CUBE
Product Description
CUBE combines a squared, elegant shape to radial
optics specially designed to ensure the best lighting
performance, producing different light effects based
on the screen type.
Understated and yet remarkably beautiful, CUBE is a
prime example of the efficient power of puristic design.
Without unnecessary frills; nothing distracts from the
focus on the key essentials: powerful, homogeneous
light in a perfectly flawless cylindrical form.Various
light distributions, lumen packages, sizes and
configurations make these highly adaptable LED
outdoor luminaires even more flexible.
Installation
Surface mounted
Connection
Design
Aluminium body, Electrostatic powder paint, Galvanized metal anchorage, High efficiency LED lighting
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CUBE.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
CUBE.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
CUBE.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
CUBE.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
CUBE.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
CUBE.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
CUBE.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
CUBE.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
CUBE.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
CUBE.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
