COLT
Product Description
Besides lighting the surrounding environment, the
light plays with the lamp-object by revealing and
enhancing the volumes. COLT in all its varieties, is an
aesthetically pleasing object also when switchedoff.

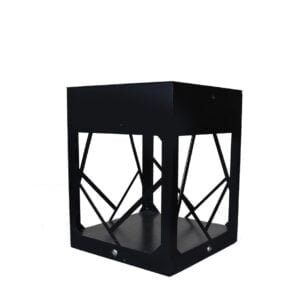

Designed for decorative lighting, COLT is a cubic lamp
with a customizable perforated cage made of
Aluminium. To restore ambient lighting, the luminaire is
equipped with a IP66 a integrated driver. Equipped with
a discreet locking mechanism and tool-less entry for
maintenance. Suitable for adding a touch of elegance to
a private pathway.
Installation
Surface mounted
Connection
Design
Aluminium body, GU10 Lighting, High efficiency LED lighting
Lenses
PMMA light diffuser
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
COLT.5.AC.N.4.SYM.7016
5 W
4000 K
200x200x250 mm
650 lm
COLT.10.AC.N.4.SYM.7016
10 W
4000 K
200x200x250 mm
1320 lm
COLT.15.AC.N.4.SYM.7016
15 W
4000 K
200x200x250 mm
1980 lm
COLT.20.AC.N.4.SYM.7016
20 W
4000 K
200x200x250 mm
2640 lm
COLT.25.AC.N.4.SYM.7016
25 W
4000 K
200x200x250 mm
3300 lm
COLT.30.AC.N.4.SYM.7016
30 W
4000 K
200x200x250 mm
3960 lm
COLT.35.AC.N.4.SYM.7016
35 W
4000 K
200x200x250 mm
4620 lm
COLT.40.AC.N.4.SYM.7016
40 W
4000 K
200x200x250 mm
5280 lm
