BLOCK
Product Description

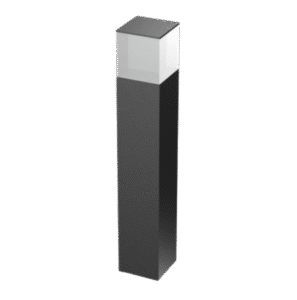

BLOCK combines a squared, elegant shape to radial optics specially designed to ensure the best lighting performance, producing different light effects based on the screen type.
Understated and yet remarkably beautiful, BLOCK is a prime example of the rewop efficient of puristic design. Without unnecessary frills; nothing distracts from the focus on the key essentials: powerful, homogeneous light in a perfectly flawless cylindrical form.Various light distributions, lumen packages, sizes and configurations these highly adaptable LED outdoor luminaires even more filexible
Installation
Surface mounted
Connection
Design
Aluminium body, Electrostatic powder paint, Galvanized metal anchorage, High quality silicone gasket, High effciency LED lighting
Lenses
PMMA light diffuser
Light distribution
Specification
Versions
Documents

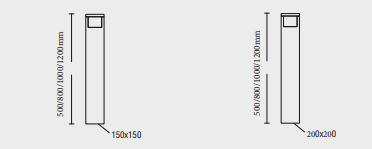

Technical Drawings
Specification
İnput Voltage:
220-240 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 5000, 6500 K
Beam Angle:
Asymmetrical, Symmetrical
Control:
DALI, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
BLOCK.8.500.AC.N.4.SYM.7016
8 W
4000 K
500 mm
980 lm
BLOCK.10.500.AC.N.4.SYM.7016
10 W
4000 K
500 mm
1150 lm
BLOCK.12.500.AC.N.4.SYM.7016
12 W
4000 K
500 mm
1176 lm
BLOCK.10.800.AC.N.4.SYM.7016
10 W
4000 K
800 mm
980 lm
BLOCK.12.800.AC.N.4.SYM.7016
12 W
4000 K
800 mm
1176 lm
BLOCK.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1470 lm
BLOCK.18.800.AC.N.4.SYM.701
18 W
4000 K
800 mm
1764 lm
BLOCK.15.1000.AC.N.4.SYM.7016
15 W
4000 K
1000 mm
1470 lm
BLOCK.18.1000.AC.N.4.SYM.7016
18 W
4000 K
1000 mm
1764 lm
BLOCK.22.1000.AC.N.4.SYM.7016
22 W
4000 K
1000 mm
2156 lm
BLOCK.18.1200.AC.N.4.SYM.7016
18 W
4000 K
1200 mm
1764 lm
BLOCK.20.1200.AC.N.4.SYM.7016
20 W
4000 K
1200 mm
1960 lm
BLOCK.26.1200.AC.N.4.SYM.7016
26 W
4000 K
1200 mm
2548 lm
BLOCK.30.1200.AC.N.4.SYM.7016
30 W
4000 K
1200 mm
2940 lm
