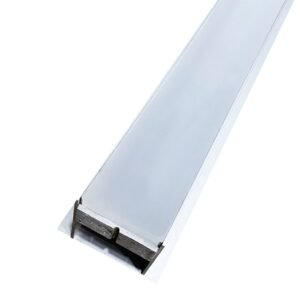

BEYOND
Product Description
A recessed slim inground. BEYOND stands for pure light: it
produces a light beam which is important when switched
on, to disappear once it is off. Those features, with the
simple ease of installation, allow BEYOND to be used as a
single light point or in series on the floor.
It can highlight even individual architectural elements such as
statues to the utmost. The luminaire is 24V. It makes
architecture the protagonist and creates suggestive light
paths thanks to its excellent lighting performance and high
versatility of use.
Luminaire comes with 2 sides cable as standard.
Installation
In-Ground
Connection
2 sides cable
Design
Aluminium Injection Die Cast Body, Electrostatic Powder Paint, Optional RAL Colors
Lenses
Extra Clear 5mm Tempered Glass
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
24 V
IP Rate:
67
Impact Resistance:
10
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
Beyond.21.AC.N.4.120.7016
21 W
4000 K
350 mm
2709 lm
