ARROW
Product Description
ARROW is the LED pole-top luminaire featuring a
classic but modern design and a diffused and
comfortable lighting, thanks to the direct light radial
optic.
Wide range of optics, powers and color temperatures
to meet any lighting project need. Featuring an elegant,
timeless design, excellent performance and fort he
latest lighting designs. Its diffused wide optic provides
a homogeneous, pleasant lighting with high visual
comfort and no glare.
Installation
Connection
Design
Galvanized Steel, Electrostatic powder paint, Galvanized metal anchorage, Aluminium PCB, High efficiency LED lighting, High quality silicone gasket
Lenses
Light distribution
Specification
Versions
Documents

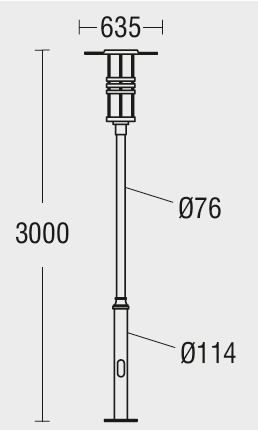

Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ARROW.35.AC.N.4.SYM.7016
35 W
4000 K
3000 mm
4620 lm
ARROW.50.AC.N.4.SYM.7016
50 W
4000 K
3000 mm
6600 lm
ARROW.60.AC.N.4.SYM.7016
60 W
4000 K
3000 mm
7920 lm
