ANE S
Product Description
ANE S represent the
maximum expression of love and
respect for the tradition of great
historical city centers.
This HB-LUX decorative classic layout is ideal for
lighting public parks, squares or pedestrian areas.
The urban lighting version is perfect to complement
the public lighting of a park or a pedestrian area, ideal
for adding elegance to an entrance or to enhance
city parks, squares or pedestrian areas. with a classicstyle
décor is able to enhance the value of
historic city centresgiving them a timeless style.
Installation
Connection
DALI , DMX
Design
Aluminium body, Electrostatic powder paint, Galvanized metal anchorage, Aluminium PCB, High efficiency LED lighting, High quality silicone gasket
Lenses
Light distribution
2700K , 3000K, 4000K , 5000K, 6500K
Specification
Versions
Documents

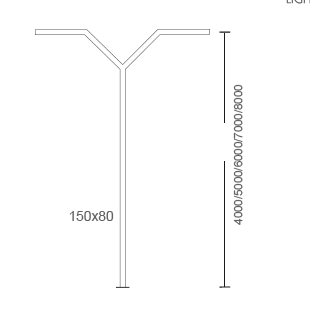

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 4000, 6500 K
Beam Angle:
Direct
Control:
DALI, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ANE.S.30.AC.N.4.SYM.7016
30 W
4000 K
150x80 H:4000 mm
3665 lm
ANE.S.40.AC.N.4.SYM.7016
40 W
4000 K
150x80 H:4000 mm
4800 lm
ANE.S.50.AC.N.4.SYM.7016
50 W
4000 K
150x80 H:4000 mm
6012 lm
ANE.S.60.AC.N.4.SYM.7016
60 W
4000 K
150x80 H:4000 mm
7200 lm
ANE.S.30.AC.N.4.SYM.7016
30 W
4000 K
150x100 H:5000 mm
3665 lm
ANE.S.40.AC.N.4.SYM.7016
40 W
4000 K
150x100 H:5000 mm
4800 lm
ANE.S.50.AC.N.4.SYM.7016
50 W
4000 K
150x100 H:5000 mm
6012 lm
ANE.S.60.AC.N.4.SYM.7016
60 W
4000 K
150x100 H:5000 mm
7200 lm
ANE.S.30.AC.N.4.SYM.7016
30 W
4000 K
150x80 H:6000 mm
3665 lm
ANE.S.40.AC.N.4.SYM.7016
40 W
4000 K
150x80 H:6000 mm
4800 lm
ANE.S.50.AC.N.4.SYM.7016
50 W
4000 K
150x80 H:6000 mm
6012 lm
ANE.S.60.AC.N.4.SYM.7016
60 W
4000 K
150x80 H:6000 mm
7200 lm
ANE.S.30.AC.N.4.SYM.7016
30 W
4000 K
150x100 H:7000 mm
3665 lm
ANE.S.40.AC.N.4.SYM.7016
40 W
4000 K
150x100 H:7000 mm
4800 lm
ANE.S.50.AC.N.4.SYM.7016
50 W
4000 K
150x100 H:7000 mm
6012 lm
ANE.S.60.AC.N.4.SYM.7016
60 W
4000 K
150x100 H:7000 mm
7200 lm
ANE.S.30.AC.N.4.SYM.7016
30 W
4000 K
150x80 H:8000 mm
3665 lm
ANE.S.40.AC.N.4.SYM.7016
40 W
4000 K
150x80 H:8000 mm
4800 lm
ANE.S.50.AC.N.4.SYM.7016
50 W
4000 K
150x80 H:8000 mm
6012 lm
ANE.S.60.AC.N.4.SYM.7016
60 W
4000 K
150x80 H:8000 mm
7200 lm
