ALES WOOD
Product Description

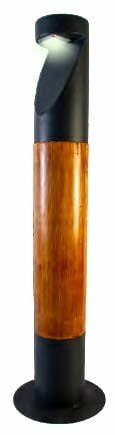

A simple and structural accent for modern exteriors.
ALES Outdoor LED bollard provides soft atmospheric
lighting to accentuate outdoor spaces and offer
guidance along pathways.
Made of aluminum, this cylindrical fixture extends
straight upward to allow its light to spill outward. This
bollard is an iconic gothic design in a modern
reinterpretation to LED sources with outstanding
performance, designed to guarantee an high visual
comfort, glare-free lighting with no light pollution.
Installation
Surface mounted
Connection
Design
Wooden Body, Electrostatic powder paint, Galvanized metal anchorage, High efciency LED lighting, High quality silicone gasket
Lenses
Light distribution
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ALESWOOD.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
ALESWOOD.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
ALESWOOD.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
ALESWOOD.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
ALESWOOD.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
ALESWOOD.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
ALESWOOD.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
ALESWOOD.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
ALESWOOD.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
ALESWOOD.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
