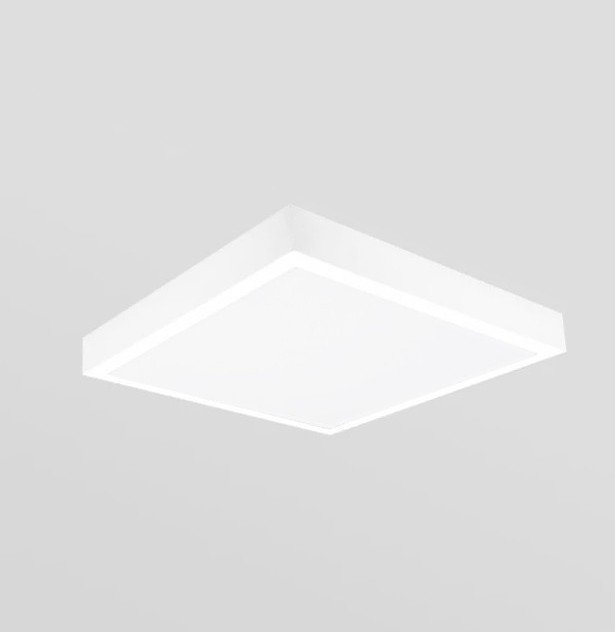

SURFACED PL 600
Product Description
DKP sheet metal body
Electrostatic coated
Highly effective LGP
UV protected diffuser
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
DKP sheet metal body Electrostatic coated Highly effective LGP UV protected diffuser Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
PLSF60.28.63.N.4.120
28 W
4000 K
630X630 mm
2800 lm
PLSF60.36P63.N.4.120
36 W
4000 K
630X630 mm
3600 lm
PLSF60.36.63.N.4.120
42 W
4000 K
630X630 mm
4200 lm
PLSF63HL.28P.63.N.4.120
28 W
4000 K
630X630 mm
3850 lm
PLSF63HL.36P.63.N.4.120
36 W
4000 K
630X630 mm
4880 lm
PLSF63HL.36.63.N.4.120
42 W
4000 K
630X630 mm
5470 lm
