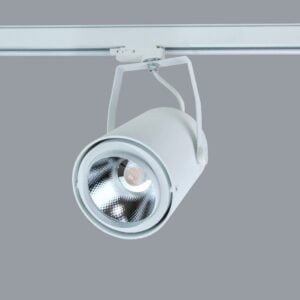

ROCCIO
Product Description
Aluminum injection body
High efficiency reflector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
Tempered Glass
ENEC Standards
Installation
Aluminum injection body High efficiency reflector Constant current LED driver Electrostatic powder coating paint Optional body colors Tempered Glass ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ROCCIO.20.125.N.4.16
20 W
4000 K
125X183 mm
2300 lm
ROCCIO.20.125.N.4.24
20 W
4000 K
125X183 mm
2280 lm
ROCCIO.20.125.N.4.46
20 W
4000 K
125X183 mm
2260 lm
ROCCIO.20.125.N.4.74
20 W
4000 K
125X183 mm
2240 lm
ROCCIO.30.125.N.4.16
30 W
4000 K
125X183 mm
3600 lm
ROCCIO.30.125.N.4.24
30 W
4000 K
125X183 mm
3580 lm
ROCCIO.30.125.N.4.46
30 W
4000 K
125X183 mm
3560 lm
ROCCIO.30.125.N.4.74
30 W
4000 K
125X183 mm
3540 lm
ROCCIO.42.125.N.4.16
42 W
4000 K
125X183 mm
5000 lm
ROCCIO.42.125.N.4.24
42 W
4000 K
125X183 mm
4980 lm
ROCCIO.42.125.N.4.46
42 W
4000 K
125X183 mm
4960 lm
ROCCIO.42.125.N.4.74
42 W
4000 K
125X183 mm
4940 lm
ROCCIO.55.125.N.4.16
55 W
4000 K
125X183 mm
6600 lm
ROCCIO.55.125.N.4.24
55 W
4000 K
125X183 mm
6580 lm
ROCCIO.55.125.N.4.46
55 W
4000 K
125X183 mm
6560 lm
ROCCIO.55.125.N.4.74
55 W
4000 K
125X183 mm
6540 lm
