Q-DOT
Product Description
Aluminum injection body
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation

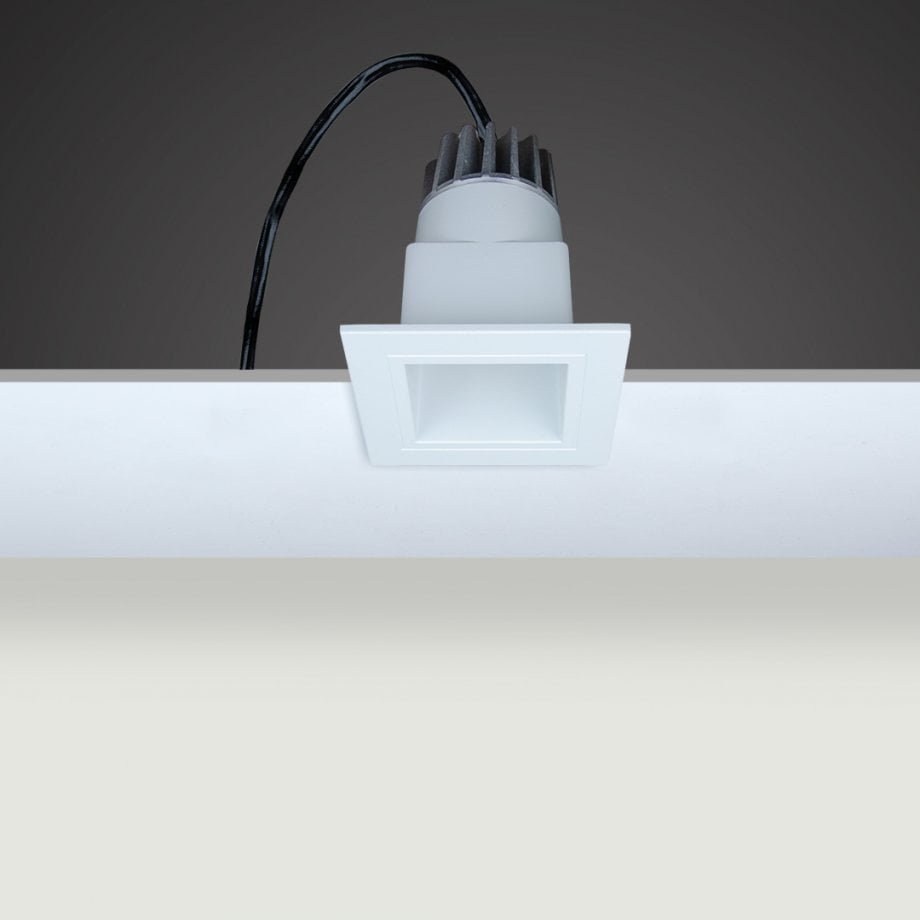

RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
SQUARE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
QDOT.7.92.N.4.23
7 W
4000 K
90X120 mm
770 lm
QDOT.7.92.N.4.37
7 W
4000 K
90X120 mm
750 lm
QDOT.7.92.N.4.51
7 W
4000 K
90X120 mm
730 lm
QDOT.10.92.N.4.23
10 W
4000 K
90X120 mm
1070 lm
QDOT.10.92.N.4.37
10 W
4000 K
90X120 mm
1050 lm
QDOT.10.92.N.4.51
10 W
4000 K
90X120 mm
1030 lm
QDOT.13.92.N.4.23
13 W
4000 K
90X120 mm
1260 lm
QDOT.13.92.N.4.37
13 W
4000 K
90X120 mm
1240 lm
QDOT.13.92.N.4.51
13 W
4000 K
90X120 mm
1220 lm
