POLARIS RC
Product Description
Aluminum extruded body
Anodized coating
UV protected frosted diffuser
Adjustable length steel ropes
Nickel plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lengths
Optional body colors
ENEC Standarts
Installation
Aluminum extruded body, UV protected diffuser, Adjustable length steel ropes, Nickel plated brass parts, Constant current LED driver, Electrostatic powder coating paint, Production in different lengths, Optional body colors, ENEC standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Specification
Versions
Documents

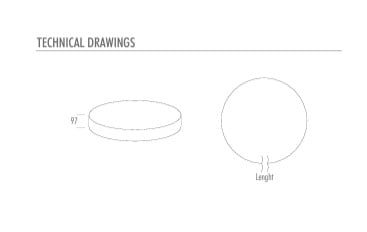

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
40
Impact Resistance:
09
CCT:
4000 K
Mounting Option:
Lightway:
Frame:
Beam Angle:
Direct
Control:
ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
POLARISRC.25.485.N.4.120
25 W
4000 K
485 cm
2625 lm
POLARISRC.38.620.N.4.120
38 W
4000 K
620 cm
3990 lm
POLARISRC.80.920.N.4.120
80 W
4000 K
920 cm
8400 lm
POLARISRC.143.1220.N.4.120
143 W
4000 K
1220 cm
15015 lm
