PARS
Product Description
Aluminum Body and
Aluminum die cast injection Heatsink Tempered Glass or Frosted Glass Constant current LED driver Electrostatic powder coating paint Optional body colors
ENEC Standards
Made in TURKEY
Installation
Aluminum Body and Aluminum die cast injection Heatsink Tempered Glass or Frosted Glass Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
CIRCLE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
Versions
Documents

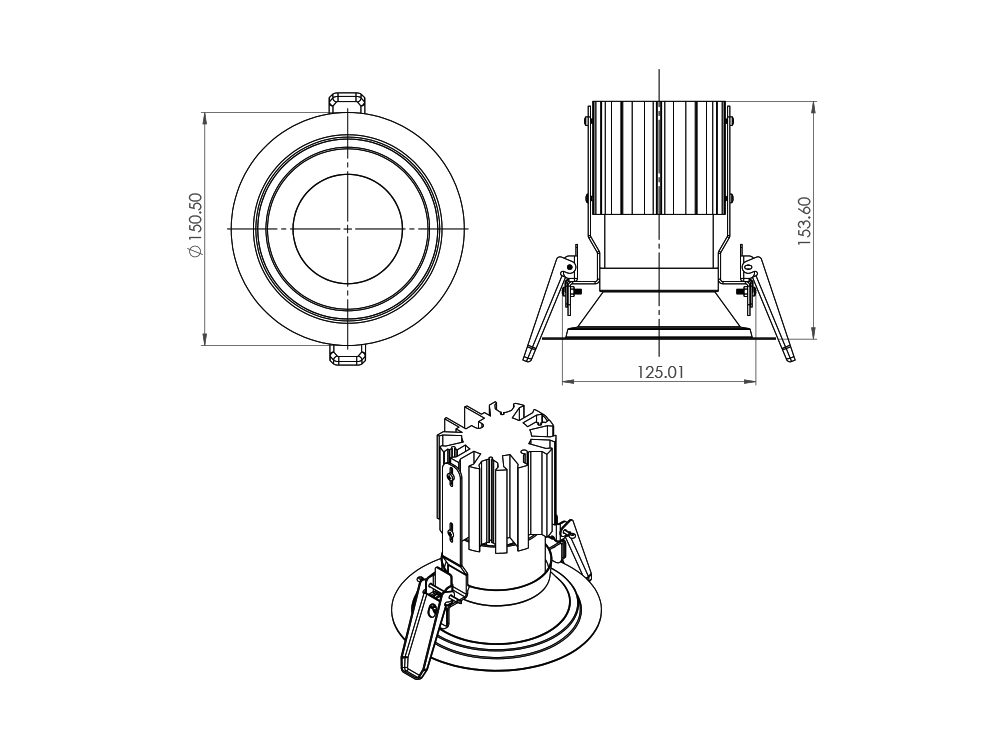

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
PARS.10.150.N.4.12
10 W
4000 K
150 mm
1430 lm
PARS.13.150.N.4.12
13 W
4000 K
150 mm
1859 lm
PARS.15.150.N.4.12
15 W
4000 K
150 mm
2145 lm
PARS.20.150.N.4.12
20 W
4000 K
150 mm
2860 lm
PARS.25.150.N.4.12
25 W
4000 K
150 mm
3575 lm
PARS.30.150.N.4.12
30 W
4000 K
150 mm
3840 lm
PARS.32.150.N.4.12
32 W
4000 K
150 mm
4448 lm
