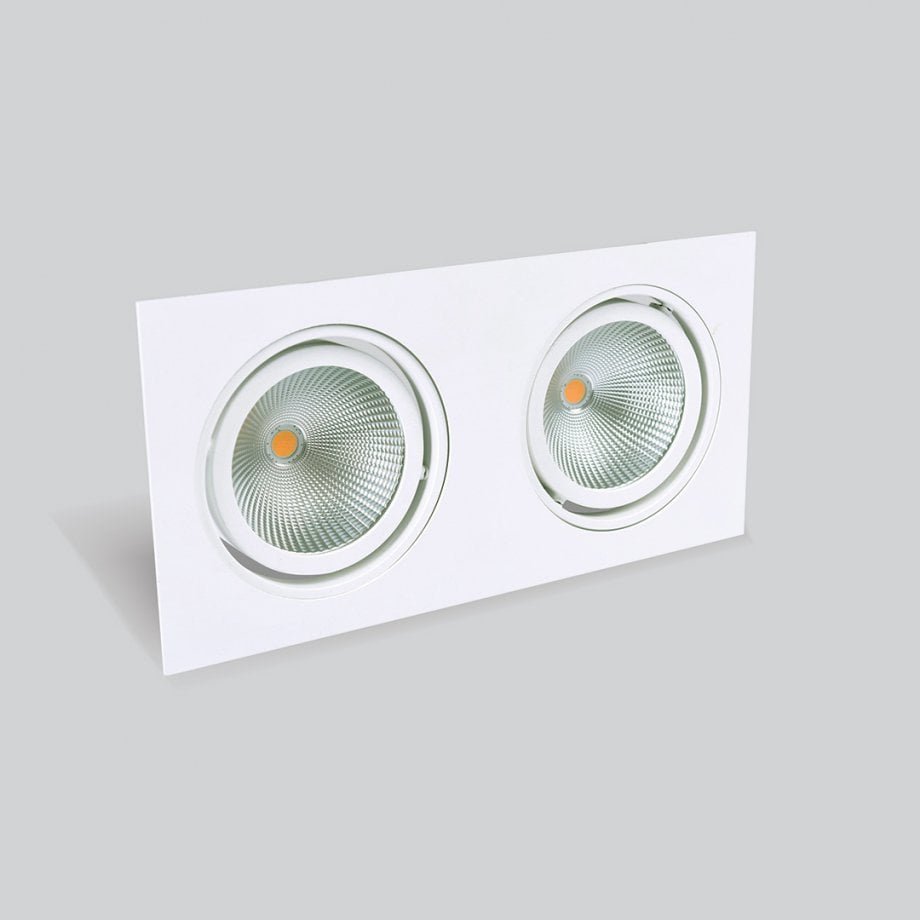

ORBIT DUO ADJUSTABLE
Product Description
Aluminum injection body and heatsink
Constant current LED driver
Electrostatic powder coating paint
Tempered glass
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
RECTANGLE SHAPE ADJUSTABLE DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
20, 44, 54, 65
Impact Resistance:
09
CCT:
3000, 4000, 6500 K
Mounting Option:
Recessed
Lightway:
DIRECT
Frame:
Trim
Beam Angle:
Medium beam, Narrow beam, Wide beam
Control:
DALI, ON/OFF, DIMMABLE
