OMEGA IP65
Product Description
Aluminum injection body
High efficiency refector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum injection body High efficiency refector Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design

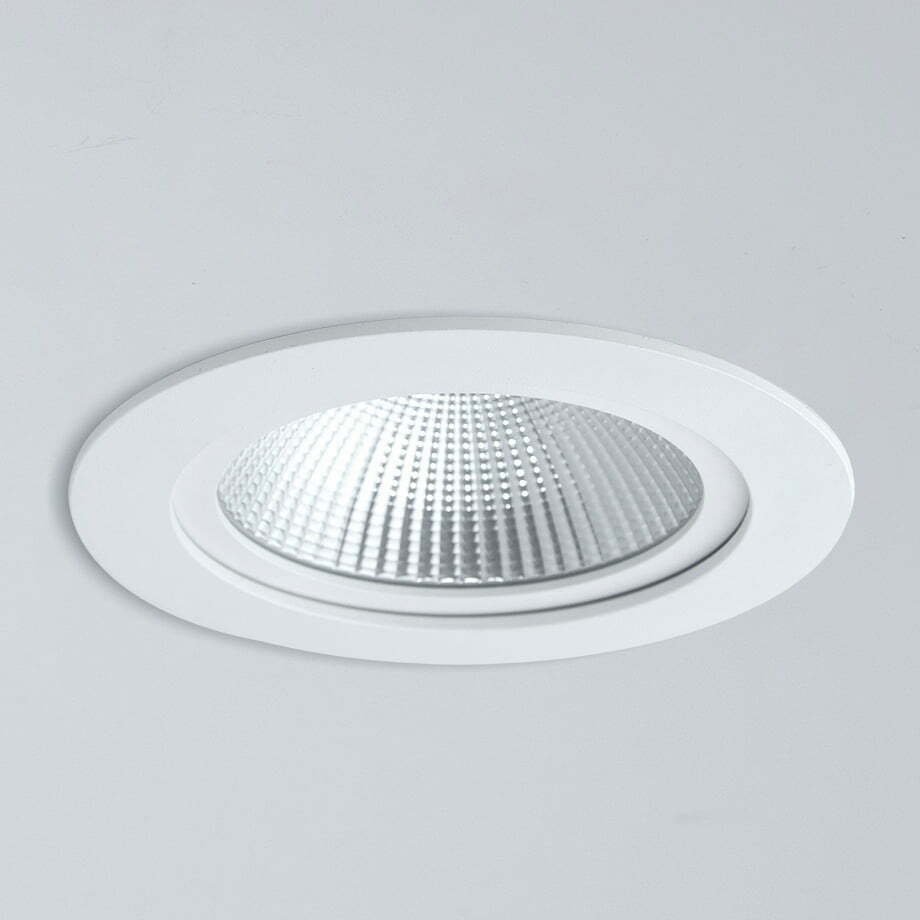

CIRCLE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
OMG.20.Ø147.N.4.16
20 W
4000 K
147X110 mm
2300 lm
OMG.20.Ø147.N.4.24
20 W
4000 K
147X110 mm
2280 lm
OMG.20.Ø147.N.4.46
20 W
4000 K
147X110 mm
2260 lm
OMG.20.Ø147.N.4.74
20 W
4000 K
147X110 mm
2240 lm
OMG.30.Ø147.N.4.16
30 W
4000 K
147X110 mm
3600 lm
OMG.30.Ø147.N.4.24
30 W
4000 K
147X110 mm
3580 lm
OMG.30.Ø147.N.4.46
30 W
4000 K
147X110 mm
3560 lm
OMG.30.Ø147.N.4.74
30 W
4000 K
147X110 mm
3540 lm
OMG.42.Ø147.N.4.16
42 W
4000 K
147X110 mm
5000 lm
OMG.42.Ø147.N.4.24
42 W
4000 K
147X110 mm
4980 lm
OMG.42.Ø147.N.4.46
42 W
4000 K
147X110 mm
4960 lm
OMG.42.Ø147.N.4.74
42 W
4000 K
147X110 mm
4940 lm
