NORD
Product Description
Aluminum body
UV protected opal diffuser Constant current LED driver Electrostatic powder coating paint Optional body colors
ENEC standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
ON/OFF- DALI- DIMMABLE 1-10V
Design
CIRCLE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

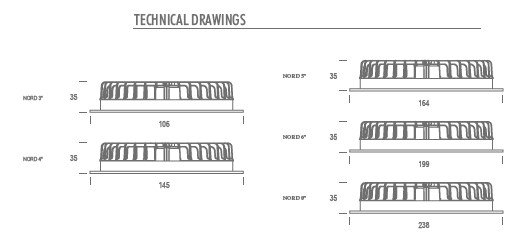

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
NORD 3".8.106.N.4.105
8 W
4000 K
Ø106 mm
760 lm
NORD 4".10.145.N.4.105
10 W
4000 K
Ø145 mm
1050 lm
NORD 5".16.164.N.4.105
16 W
4000 K
Ø164 mm
1840 lm
NORD 6".21.199.N.4.105
21 W
4000 K
Ø199 mm
2415 lm
NORD 8".23.238.N.4.105
23 W
4000 K
Ø238 mm
2703 lm
