NAIK 70
Product Description
Aluminum extrusion body Aluminum heatsink
High reflector effiency
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body Aluminum heatsink High reflector effiency Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents

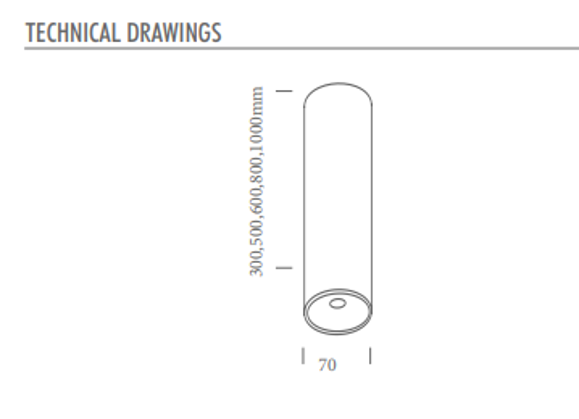

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
NK70.8.70.N.4.12
8 W
4000 K
70 mm
856 lm
NK70.11.70.N.4.12
11 W
4000 K
70 mm
1177 lm
NK70.14.70.N.4.12
14 W
4000 K
70 mm
1498 lm
NK70.16.70.N.4.12
16 W
4000 K
70 mm
1712 lm
NK70.18.70.N.4.12
18 W
4000 K
70 mm
1926 lm
NK70.20.70.N.4.12
20 W
4000 K
70 mm
2140 lm
NK70.22.70.N.4.12
22 W
4000 K
70 mm
2354 lm
