NAIK 60
Product Description
Aluminum extrusion body
Aluminum heatsink
High effciency reflector Constant current LED driver Electrostatic powder coating paint Optional body colors
ENEC Standards
Installation
Aluminum extrusion body Aluminum heatsink High effciency reflector Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents

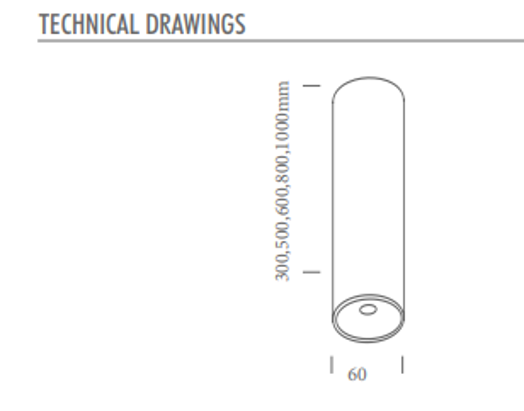

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
NK60.8.60.N.4.12
8 W
4000 K
60 mm
856 lm
NK60.11.60.N.4.12
11 W
4000 K
60 mm
1177 lm
NK60.14.60.N.4.12
14 W
4000 K
60 mm
1498 lm
NK60.16.60.N.4.12
16 W
4000 K
60 mm
1712 lm
NK60.18.60.N.4.12
18 W
4000 K
60 mm
1926 lm
NK60.20.60.N.4.12
20 W
4000 K
60 mm
2140 lm
