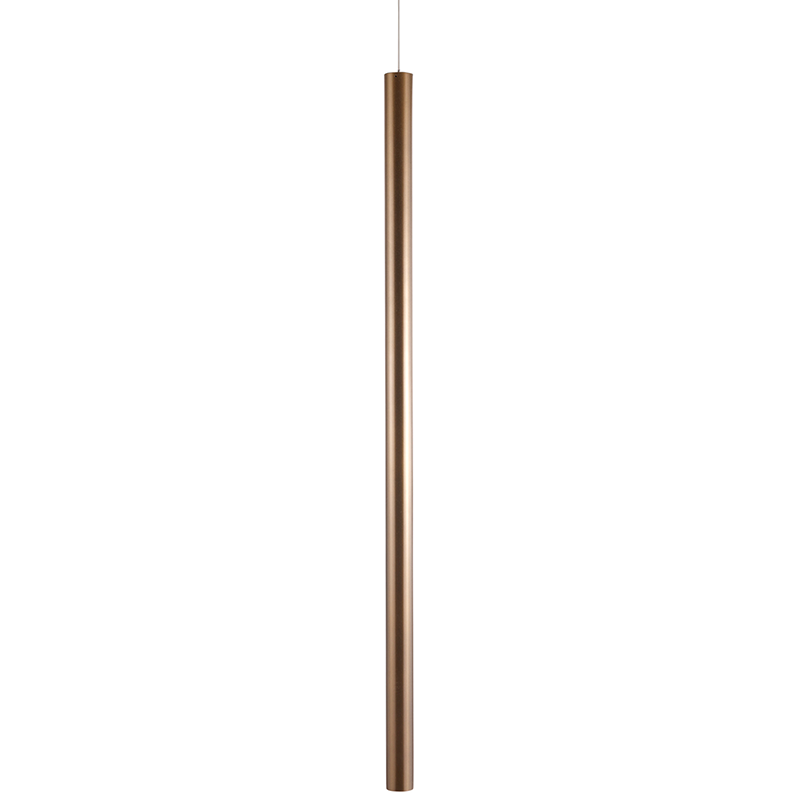

NAIK 40
Product Description
Aluminum extrusion body Aluminum heatsink
High reflector effiency
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body Aluminum heatsink High efrotcefler ycneicfi Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
NK40.1.40.N.4.12
1 W
4000 K
40 mm
94 lm
NK40.2.40.N.4.12
2 W
4000 K
40 mm
188 lm
NK40.3.40.N.4.12
3 W
4000 K
40 mm
282 lm
NK40.5.40.N.4.12
5 W
4000 K
40 mm
468 lm
NK40.6.40.N.4.12
6 W
4000 K
40 mm
564 lm
NK40.8.40.N.4.12
8 W
4000 K
40 mm
752 lm
NK40.9.40.N.4.12
9 W
4000 K
40 mm
846 lm
NK40.10.40.N.4.12
9 W
4000 K
40 mm
940 lm
