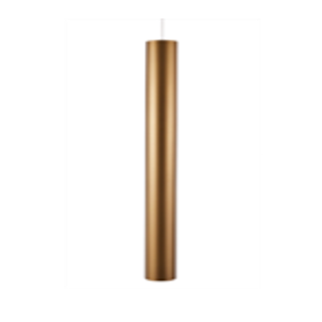

NAIK 100
Product Description
Aluminum extrusion body Aluminum heatsink
High reflector effiency
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body Aluminum heatsink High reflector effiency Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents

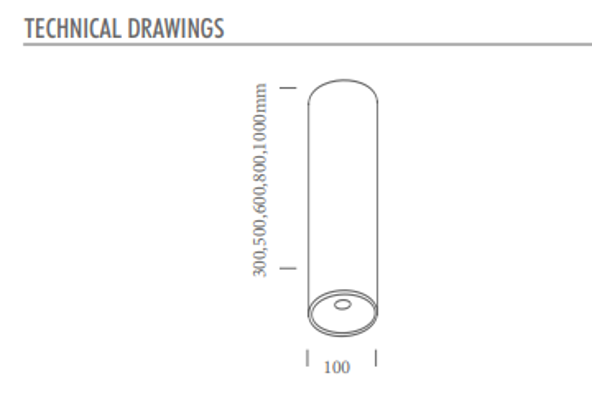

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
NK100.10.100.N.4.12
10 W
4000 K
100 mm
1120 lm
NK100.12.100.N.4.12
12 W
4000 K
100 mm
1344 lm
NK100.18.100.N.4.12
18 W
4000 K
100 mm
2016 lm
NK100.22.100.N.4.12
22 W
4000 K
100 mm
2464 lm
NK100.30.100.N.4.12
30 W
4000 K
100 mm
3360 lm
