LYRAS TRIO
Product Description
Aluminum injection body
Tempered or Frosted Glass
High efficiency reflector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design

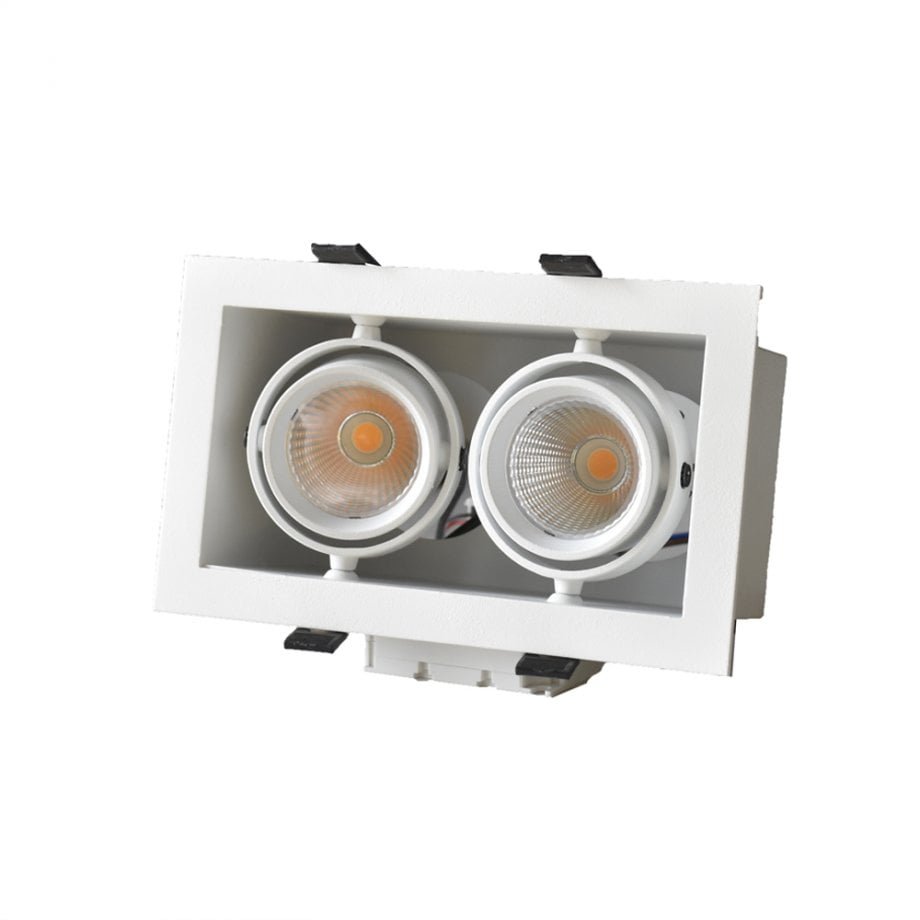

RECTANGLE SHAPE ADJUSTABLE DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

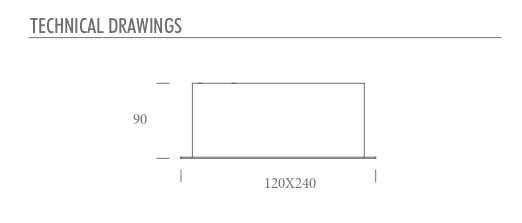

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LYRAS3.21.120x360.N.4.23
21 W
4000 K
120X360X90 mm
2310 lm
LYRAS3.21.120x360.N.4.37
21 W
4000 K
120X360X90 mm
2290 lm
LYRAS3.21.120x360.N.4.51
21 W
4000 K
120X360X90 mm
2270 lm
LYRAS3.30.120x360.N.4.23
30 W
4000 K
120X360X90 mm
3210 lm
LYRAS3.30.120x360.N.4.37
30 W
4000 K
120X360X90 mm
3290 lm
LYRAS.30.120x360.N.4.51
30 W
4000 K
120X360X90 mm
3270 lm
