LINERES TRACK
Product Description
Track mounted
Aluminum extruded body
Optical Lens
Adjustable length steel ropes
Nickel plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lengths
Optional body colors
ENEC standards
Installation
Track mounted Aluminum extruded body Optical Lens Adjustable length steel ropes Nickel plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lengths Optional body colors ENEC standards
Connection
DALI, DIM, DMX
Design
Reflector
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents

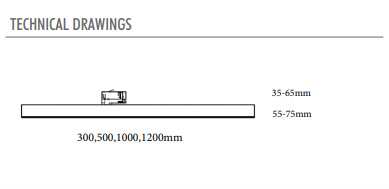

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LINERES TRACK.10.300.N.4.50
10 W
4000 K
300 mm
1220 lm
LINERES TRACK.15.300.N.4.50
15 W
4000 K
300 mm
1830 lm
LINERES TRACK.20.300.N.4.50
20 W
4000 K
300 mm
2440 lm
LINERES TRACK.25.500.N.4.50
25 W
4000 K
500 mm
3050 lm
LINERES TRACK.30.500.N.4.50
30 W
4000 K
500 mm
3660 lm
LINERES TRACK.35.1000.N.4.50
35 W
4000 K
1000 mm
4270 lm
LINERES TRACK.40.1000.N.4.50
40 W
4000 K
1000 mm
4120 lm
LINERES TRACK.45.1200.N.4.50
45 W
4000 K
1200 mm
4880 lm
LINERES TRACK.50.1200.N.4.50
50 W
4000 K
1200 mm
6100 lm
LINERES TRACK.55.1200.N.4.50
55 W
4000 K
1200 mm
6710 lm
