LINEA TRACK
Product Description
Aluminum injection body
Adjustable head
PMMA dİffuser
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC driver
ENEC standards
Installation
Aluminum injection body Adjustable head PMMA dİffuser Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC driver ENEC standards
Connection
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents

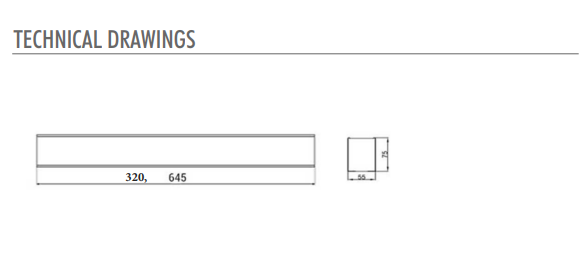

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LINEATRACK.8.320.N.4.30
8 W
4000 K
320 mm
664 lm
LINEATRACK.10.320.N.4.30
10 W
4000 K
320 mm
830 lm
LINEATRACK.15.320.N.4.30
15 W
4000 K
320 mm
1245 lm
LINEATRACK.20.645.N.4.30
20 W
4000 K
645 mm
1660 lm
LINEATRACK.24.645.N.4.30
24 W
4000 K
645 mm
1992 lm
LINEATRACK.28.645.N.4.30
28 W
4000 K
645 mm
2324 lm
