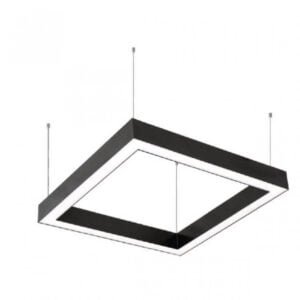

KUBIK P75
Product Description
Aluminium extruded body
Anodized coating
UV protected frosted diffuser
Adjustable lenght steel ropes
Nickel Plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lenghts
Optional body colors
ENEC standarts
Installation
Aluminium extruded body Anodized coating UV protected frosted diffuser Adjustable lenght steel ropes Nickel Plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lenghts Optional body colors ENEC standarts
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
40
Impact Resistance:
09
CCT:
4000 K
Mounting Option:
Pendant
Lightway:
DIRECT
Frame:
Trim
Beam Angle:
Direct
Control:
ON/OFF
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
KUBIK.72.650x650.N.4.120
72 W
4000 K
65X65 mm
5976 lm
KUBIK.108.95x95.N.4.120
108 W
4000 K
95X95 mm
8856 lm
KUBIK.144.125x125.N.4.120
144 W
4000 K
125X125 mm
11952 lm
KUBIK.44.54x54.N.4.120
44 W
4000 K
54x54 mm
4620 lm
KUBIK.64.54x54.N.4.120
64 W
4000 K
54x54 mm
7150 lm
KUBIK.52.64x64.N.4.120
52 W
4000 K
64x64 mm
6200 lm
KUBIK.89.74x74.N.4.120
89 W
4000 K
74x74 mm
9210 lm
KUBIK.102.84x84.N.4.120
102 W
4000 K
84x84 mm
10710 lm
KUBIK.79.94x94.N.4.120
79 W
4000 K
94X94 mm
8500 lm
KUBIK.153.120x120.N.4.120
153 W
4000 K
120X120 mm
16200 lm
KUBIK.192.150x150.N.4.120
192 W
400 K
150X150 mm
19820 lm
KUBIK.176.200x200.N.4.120
176 W
400 K
200X200 mm
18600 lm
KUBIK.44.55x55.N.4.120
44 W
4000 K
55x55 mm
4620 lm
KUBIK.64.55x55.N.4.120
64 W
4000 K
55x55 mm
6720 lm
KUBIK.52.65x65.N.4.120
52 W
4000 K
65x65 mm
5460 lm
KUBIK.76.65x65.N.4.120
76 W
4000 K
65x65 mm
7980 lm
KUBIK.61.75x75.N.4.120
61 W
4000 K
75x75 mm
6405 lm
KUBIK.153.120x120.N.4.120
153 W
400 K
120x120 mm
16065 lm
KUBIK.176.200x200.N.4.120
176 W
4000 K
200x200 mm
18480 lm
KUBIK.220.250x250.N.4.120
220 W
4000 K
250x250 mm
23100 lm
KUBIK.320.250x250.N.4.120
320 W
4000 K
250x250 mm
26250 lm
KUBIK.384.300x300.N.4.120
384 W
4000 K
300X300 mm
30720 lm
