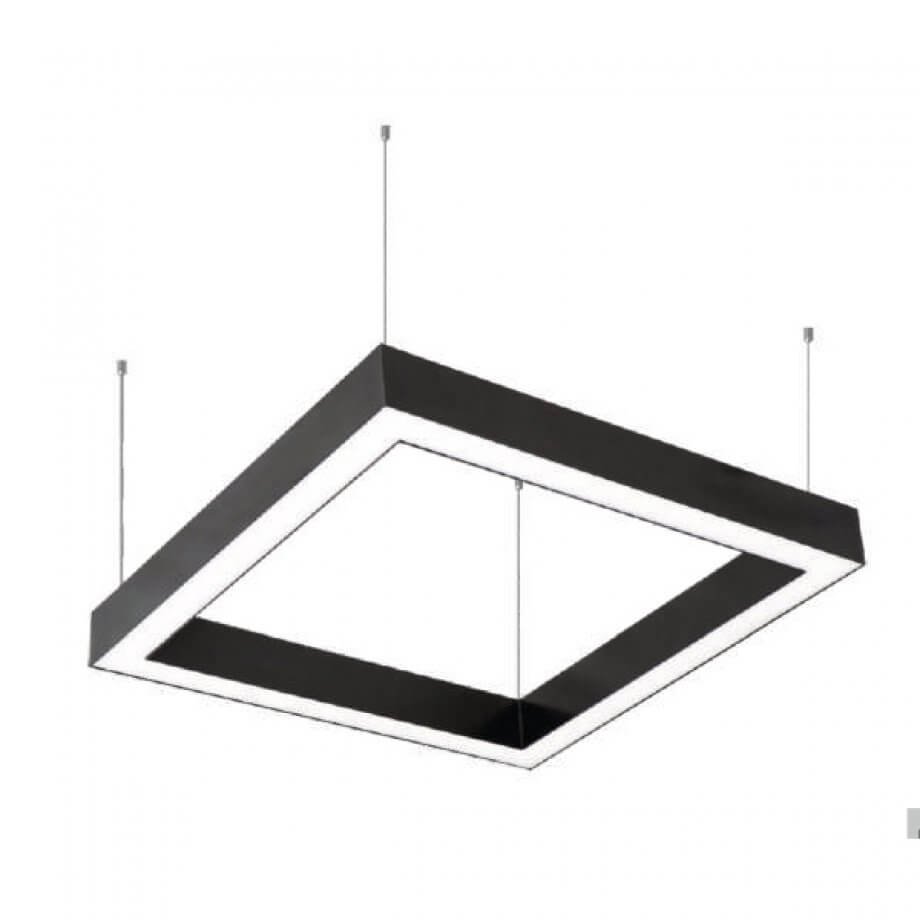

KUBIK P100
Product Description
Aluminium extruded body
Anodized coating
UV protected frosted diffuser
Adjustable lenght steel ropes
Nickel Plated brass parts
Constant current LED driver
Electrostatic powder coating paint
Production in different lenghts
Optional body colors
ENEC standarts
Installation
Aluminium extruded body Anodized coating UV protected frosted diffuser Adjustable lenght steel ropes Nickel Plated brass parts Constant current LED driver Electrostatic powder coating paint Production in different lenghts Optional body colors ENEC standarts
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
KUBIK.20.540x540.N.4.120
20 W
4000 K
540x540 mm
3200 lm
KUBIK.44.540x540.N.4.120
44 W
4000 K
540x540 mm
4976 lm
KUBIK.28.640x640.N.4.120
28 W
4000 K
640x640 mm
3320 lm
KUBIK.52.640x640.N.4.120
52 W
4000 K
640x640 mm
5620 lm
KUBIK.64.640x640.N.4.120
64 W
4000 K
640x640 mm
7418 lm
KUBIK.76.640x640.N.4.120
76 W
4000 K
640x640 mm
7860 lm
KUBIK.72.650x650.N.4.120
72 W
4000 K
650X650 mm
5976 lm
KUBIK.36.740x740.N.4.120
36 W
4000 K
740x740 mm
4220 lm
KUBIK.61.740x740.N.4.120
61 W
4000 K
740x740 mm
6190 lm
KUBIK.54.750x750.N.4.120
54 W
4000 K
740x740 mm
5800 lm
KUBIK.74.840x840.N.4.120
74 W
4000 K
840x840 mm
7152 lm
KUBIK.79.940x940.N.4.120
79 W
4000 K
940x940 mm
8120 lm
KUBIK.108.950x950.N.4.120
108 W
4000 K
950X950 mm
8856 lm
KUBIK.85.1040x1040.N.4.120
85 W
4000 K
1040x1040 mm
9150 lm
KUBIK.96.1140x1140.N.4.120
96 W
4000 K
1140x1140 mm
10200 lm
KUBIK.105.1200x1200.N.4.120
105 W
4000 K
1200x1200 mm
11088 lm
KUBIK.153.1200x1200.N.4.120
153 W
4000 K
1200x1200 mm
15920 lm
KUBIK.192.1500x1500.N.4.120
192 W
4000 K
1500x1500 mm
20100 lm
KUBIK.176.2000x2000.N.4.120
176 W
4000 K
2000x2000 mm
18420 lm
KUBIK.256.2000x2000.N.4.120
256 W
4000 K
2000x2000 mm
26880 lm
KUBIK.320.2500x2500.N.4.120
320 W
4000 K
2500x2500 mm
32254 lm
KUBIK.264.3000x3000.N.4.120
264 W
4000 K
3000x3000 mm
27720 lm
KUBIK.384.3000x3000.N.4.120
384 W
4000 K
3000x3000 mm
40120 lm
