KOZA XL
Product Description
Aluminum extrusion body
UV protected diffuser
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body UV protected diffuser Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents

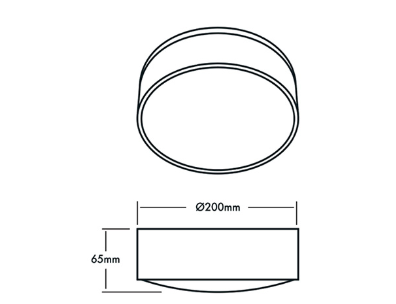

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
KOZAXL.18.200.N.4.100
18 W
4000 K
200 mm
2070 lm
KOZAXL.20.200.N.4.100
20 W
4000 K
200 mm
2300 lm
KOZAXL.23.200.N.4.100
23 W
4000 K
200 mm
2645 lm
