EVA
Product Description
Aluminum extrusion body
High efficiency reflector
Tempered Glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body High efficiency reflector Tempered Glass Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents

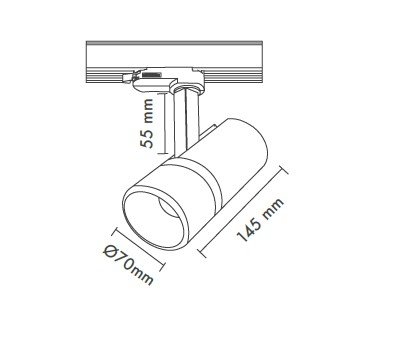

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
EVA.7.70.N.4.25
7 W
4000 K
70X145 mm
770 lm
EVA.7.70.N.4.47
7 W
4000 K
70X145 mm
750 lm
EVA.10.70.N.4.25
10 W
4000 K
70X145 mm
1130 lm
EVA.10.70.N.4.47
10 W
4000 K
70X145 mm
1110 lm
EVA.13.70.N.4.25
13 W
4000 K
70X145 mm
1261 lm
EVA.13.70.N.4.47
13 W
4000 K
70X145 mm
1241 lm
