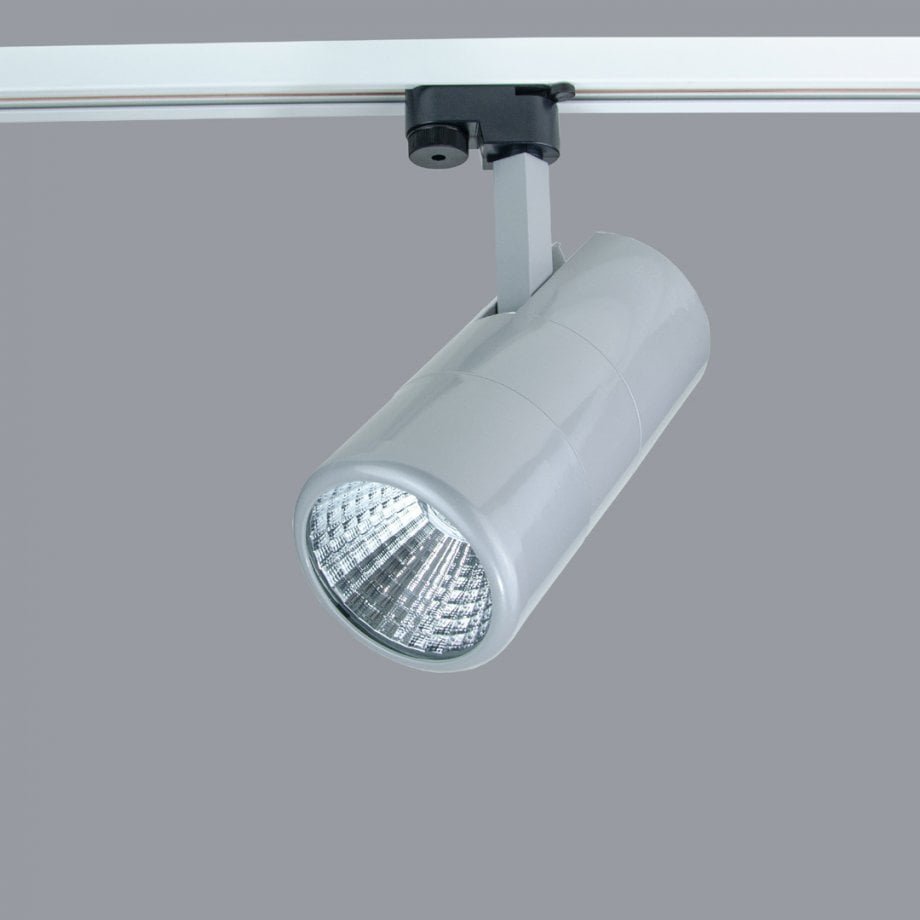

EVA PLUS
Product Description
Aluminum extrusion body
High efficiency reflector
Tempered Glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
Aluminum extrusion body High efficiency reflector Tempered Glass Constant current LED driver Electrostatic powder coating paint Optional body colors ENEC Standards
Connection
DALI, DIM, DMX
Design
Reflector
PMMA Diffuser
Light distribution
Asymmetrical, Narrow beam, Wide beam
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
EVAPL.20.90.N.4.28
20 W
4000 K
90X200 mm
2300 lm
EVAPL.20.90.N.4.40
20 W
4000 K
90X200 mm
2280 lm
EVAPL.20.90.N.4.74
20 W
4000 K
90X200 mm
2260 lm
EVAPL.30.90.N.4.28
30 W
4000 K
90X200 mm
3600 lm
EVAPL.30.90.N.4.40
30 W
4000 K
90X200 mm
3580 lm
EVAPL.30.90.N.4.74
30 W
4000 K
90X200 mm
3560 lm
EVAPL.35.90.N.4.28
35 W
4000 K
90X200 mm
4400 lm
EVAPL.35.90.N.4.40
35 W
4000 K
90X200 mm
4380 lm
EVAPL.35.90.N.4.74
35 W
4000 K
90X200 mm
4360 lm
