ELECTI SQUARE 70
Product Description
Aluminum injection body
High efficiency reflector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design

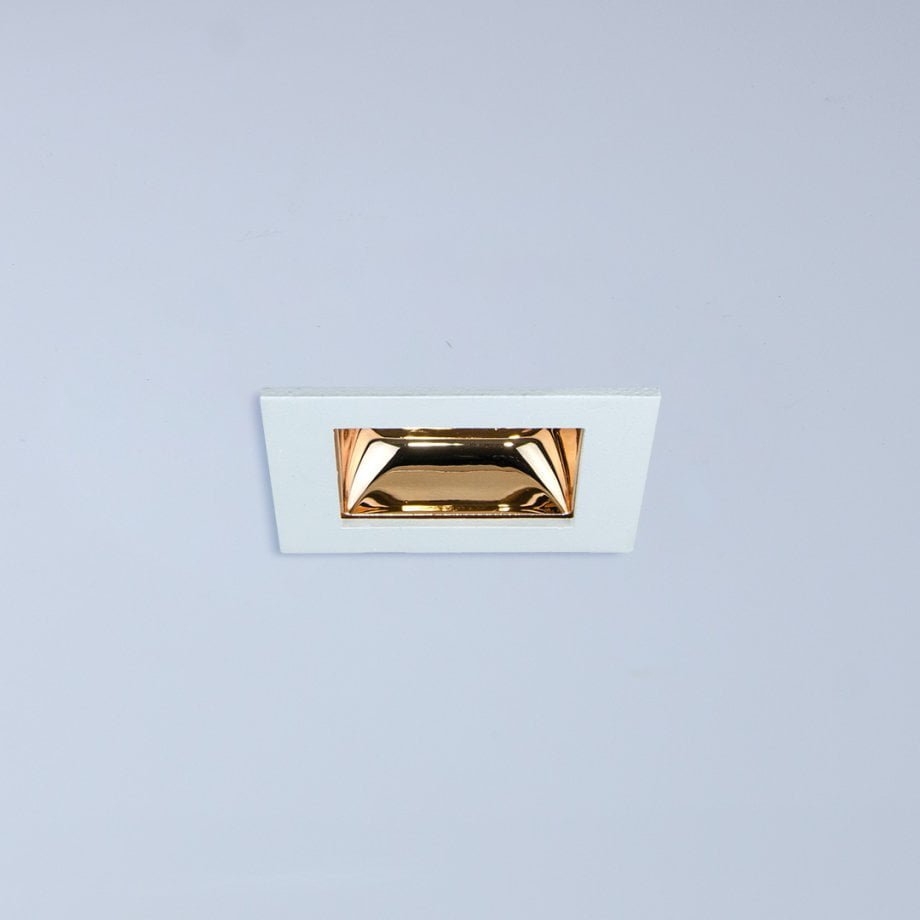

SQUARE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of satin metallised aluminium in bronze, gold, chrome or black color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

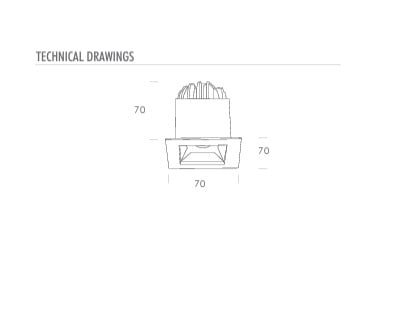

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ELECSQ70 .7.60.N.4.19
7 W
4000 K
70x70 mm
770 lm
ELECSQ70 .7.60.N.4.40
7 W
4000 K
70x70 mm
750 lm
ELECSQ70. 10.60.N.4.19
10 W
4000 K
70x70 mm
1070 lm
ELECSQ70 .10.60.N.4.40
10 W
4000 K
70x70 mm
1050 lm
ELECSQ70 .13.60.N.4.19
13 W
4000 K
60X60 mm
1260 lm
ELECSQ70 .13.60.N.4.40
13 W
4000 K
70x70 mm
1241 lm
