ELECTI ADJUSTABLE 70
Product Description
Aluminum injection body
High efficiency reflector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm 2 CABLE
Design

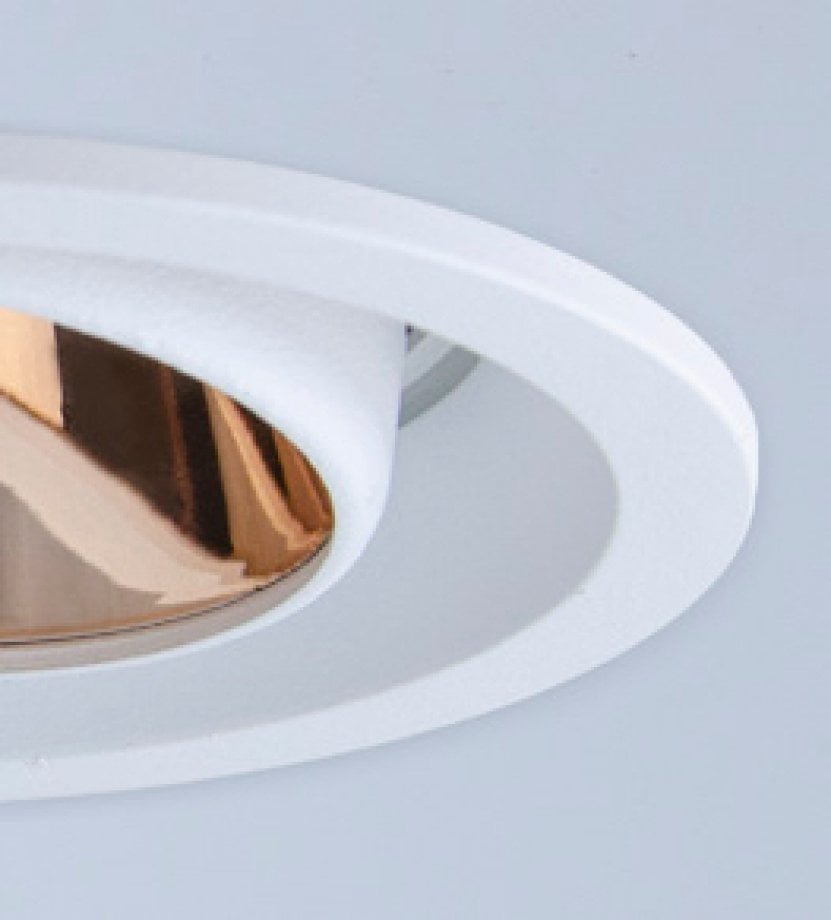

CIRCLE SHAPE ADJUSTABLE DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH METALLISED REFLECTOR AND CLEAR LENSES
Reflector
Reflector of satin metallised aluminium in bronze, gold, chrome or black color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ELECTIAD70.7.110.N.4.19
7 W
4000 K
110x110 mm
769 lm
ELECTIAD70.7.110.N.4.40
7 W
4000 K
110x110 mm
750 lm
ELECTIAD70.10.110.N.4.19
10 W
4000 K
110x110 mm
1070 lm
ELECTIAD70.10.110.N.4.40
10 W
4000 K
110x110 mm
1050 lm
ELECTIAD70.13.110.N.4.19
13 W
4000 K
110x110 mm
1260 lm
ELECTIAD70.13.110.N.4.40
13 W
4000 K
110x110 mm
1240 lm
