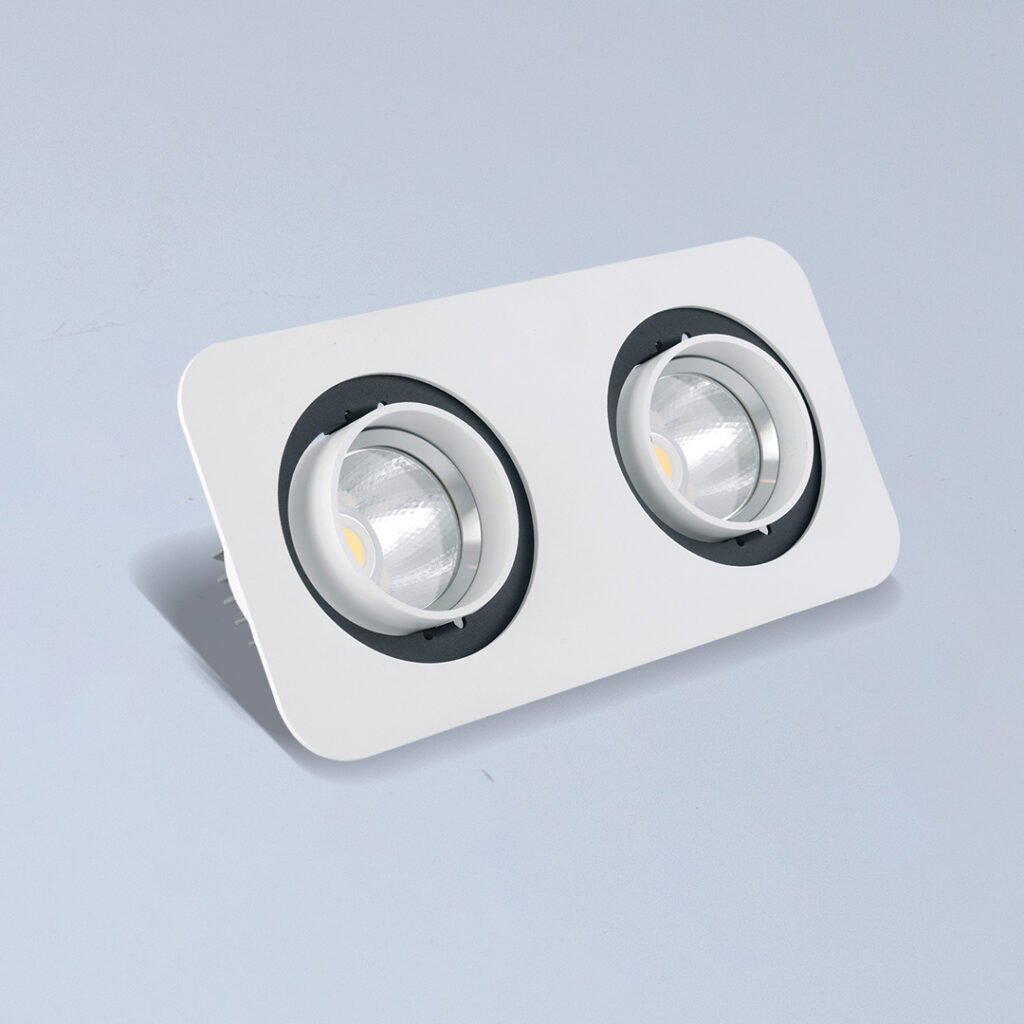

COSMO DUO
Product Description
Aluminum injection body
Tempered glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
Reflector
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

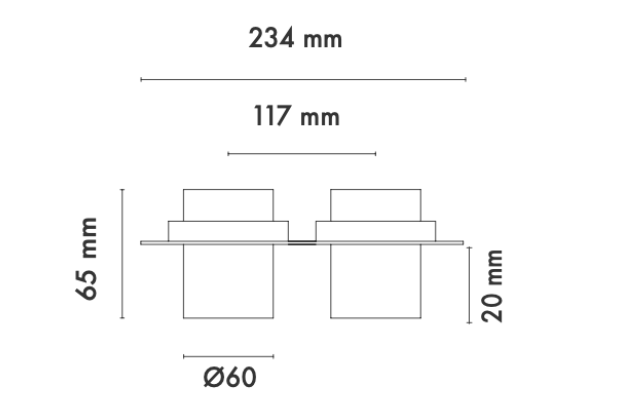

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CSMO2SQ.14.117x234.N.4.23
14 W
4000 K
117x234 mm
1540 lm
CSMO2SQ.14.117x234.N.4.37
14 W
4000 K
117x234 mm
1520 lm
CSMO2SQ.14.117x234.N.4.51
14 W
4000 K
117x234 mm
1500 lm
CSMO2SQ.20.117x234.N.4.23
20 W
4000 K
117x234 mm
2140 lm
CSMO2SQ.20.117x234.N.4.37
20 W
4000 K
117x234 mm
2120 lm
CSMO2SQ.20.117x234.N.4.51
20 W
4000 K
117x234 mm
2100 lm
CSMO2SQ.26.117x234.N.4.23
26 W
4000 K
117x234 mm
2522 lm
CSMO2SQ.26.117x234.N.4.37
26 W
4000 K
117x234 mm
2500 lm
CSMO2SQ.26.117x234.N.4.51
26 W
4000 K
117x234 mm
2479 lm
