CONCORDE
Product Description
Aluminum injection body
High efficiency refector
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
ON/OFF- DALI- DIMMABLE 1-10V
Design

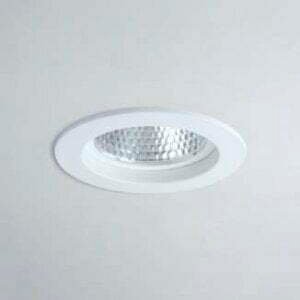

CIRCLE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CNCR.20.Ø147.N.4.16
20 W
4000 K
147 mm
2300 lm
CNCR.20.Ø147.N.4.24
20 W
4000 K
147 mm
2280 lm
CNCR.20.Ø147.N.4.46
20 W
4000 K
147 mm
2260 lm
CNCR.20.Ø147.N.4.74
20 W
4000 K
147 mm
2240 lm
CNCR.30.Ø147.N.4.16
30 W
4000 K
147 mm
3600 lm
CNCR.30.Ø147.N.4.24
30 W
4000 K
147 mm
3580 lm
CNCR.30.Ø147.N.4.46
30 W
4000 K
147 mm
3560 lm
CNCR.30.Ø147.N.4.74
30 W
4000 K
147 mm
3540 lm
CNCR.42.Ø147.N.4.16
42 W
4000 K
147 mm
5000 lm
CNCR.42.Ø147.N.4.24
42 W
4000 K
147 mm
4980 lm
CNCR.42.Ø147.N.4.46
42 W
4000 K
147 mm
4960 lm
CNCR.42.Ø147.N.4.74
42 W
4000 K
147 mm
4940 lm
CNCR.55.Ø147.N.4.16
55 W
4000 K
147 mm
6600 lm
CNCR.55.Ø147.N.4.24
55 W
4000 K
147 mm
6580 lm
CNCR.55.Ø147.N.4.46
55 W
4000 K
147 mm
6560 lm
CNCR.55.Ø147.N.4.74
55 W
4000 K
147 mm
6540 lm
